Tsung User’s manual

Version:1.5.0
Date :June 17, 2013

Contents

1  Introduction

1.1  What is Tsung ?

Tsung (formerly IDX-Tsunami) is a distributed load testing tool. It is protocol-independent and can currently be used to stress HTTP, WebDAV, SOAP, PostgreSQL, MySQL, LDAP, and Jabber/XMPP servers.

It is distributed under the GNU General Public License version 2.

1.2  What is Erlang and why is it important for Tsung ?

Tsung’s main strength is its ability to simulate a huge number of simultaneous user from a single machine. When used on cluster, you can generate a really impressive load on a server with a modest cluster, easy to set-up and to maintain. You can also use Tsung on a cloud like EC2.

Tsung is developed in Erlang and this is where the power of Tsung resides.

Erlang is a concurrency-oriented programming language. Tsung is based on the Erlang OTP (Open Transaction Platform) and inherits several characteristics from Erlang:

More information on Erlang on http://www.erlang.org and http://www.erlang-projects.org/

1.3  Tsung background

History:

Tsung has been used for very high load tests:

Tsung has been used at:

2  Features

2.1  Tsung main features

2.2  HTTP related features

2.3  WEBDAV related features

The WebDAV (RFC 4918) plugin is a superset of the HTTP plugin. It adds the following features (some versionning extensions to WebDAV (RFC 3253) are also supported):

2.4  Jabber/XMPP related features

2.5  PostgreSQL related features

2.6  MySQL related features

This plugin is experimental. It works only with MySQL version 4.1 and higher.

2.7  Websocket related features

This plugin is experimental. It only support rfc6455 currently.

2.8  AMQP related features

This plugin is experimental. It only support AMQP-0.9.1 currently. You can find examples in doc/amqp.xml.

2.9  LDAP related features

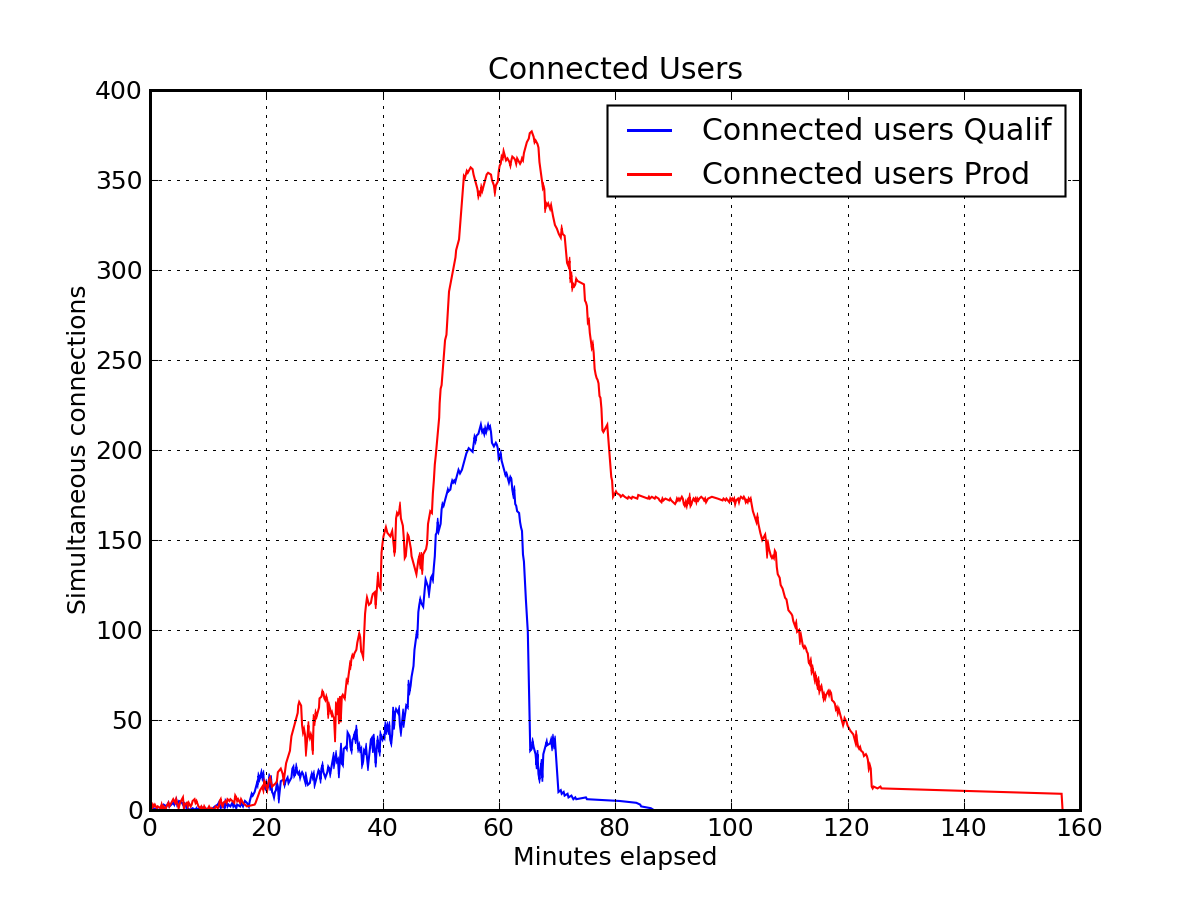

2.10  Complete reports set

Measures and statistics produced by Tsung are extremely feature-full. They are all represented as a graphic. Tsung produces statistics regarding:

Note that Tsung takes care of the synchronization process by itself. Gathered statistics are «synchronized».

It is possible to generate graphs during the benchmark as statistics are gathered in real-time.

2.11  Highlights

Tsung has several advantages over other injection tools:

3  Installation

This package has been tested on Linux, FreeBSD and Solaris. A port is available on MacOS X. It should work on Erlang supported platforms (Linux, Solaris, *BSD, Win32 and MacOS-X).

3.1  Dependencies

3.2  Compilation

./configure
 make
 make install

If you want to download the development version, use git:

git clone https://github.com/processone/tsung.git, see alsohttps://github.com/processone/tsung

You can also build packages with make deb (on debian and ubuntu) and make rpm (on fedora, rhel, and other rpm based distribution)

3.3  Configuration

The default configuration file is ~/.tsung/tsung.xml ( there are several sample files in /usr/share/doc/tsung/examples).

Log files are saved in ~/.tsung/log/ . A new sub-directory is created for each test using the current date as name (~/.tsung/log/20040217-0940 for ex.)

3.4  Running

Two commands are installed in the directory $PREFIX/bin: tsung and tsung-recorder. A man page is available for both commands.

>tsung -h
Usage: tsung <options> start|stop|debug|status
Options:
    -f <file>     set configuration file (default is ~/.tsung/tsung.xml)
                    (use - for standard input)
    -l <logdir>   set log directory (default is ~/.tsung/log/YYYYMMDD-HHMM/)
    -i <id>       set controller id (default is empty)
    -r <command>  set remote connector (default is ssh)
    -s            enable erlang smp on client nodes
    -m <file>     write monitoring output on this file (default is tsung.log)
                   (use - for standard output)
    -F            use long names (FQDN) for erlang nodes
    -w            warm-up delay (default is 10 sec)
    -v            print version information and exit
    -6            use IPv6 for tsung internal communications
    -h            display this help and exit

A typical way of using tsung is to run: tsung -f myconfigfile.xml start.

The command will print the current log directory created for the test, and wait until the test is over.

3.5  Feedback

Use the Tsung mailing list (see https://lists.process-one.net/mailman/listinfo/tsung-users) if you have suggestions or questions about Tsung. You can also use the bug-tracker available at https://support.process-one.net/browse/TSUN. You can also try the #tsung IRC channel on Freenode.

4  Benchmark approach

4.1  HTTP/WebDAV benchmark approach

4.1.1  Benchmarking a Web server

  1. Record one or more sessions: start the recorder with: tsung-recorder start, and then configure your browser to use Tsung proxy recorder (the listen port is 8090). A session file will be created. For HTTPS recording, use http://- instead of https:// in your browser.
  2. Edit / organize scenario, by adding recorded sessions in the configuration file.
  3. Write small code for dynamic parts if needed and place dynamic mark-up in the scenario.
  4. Test and adjust scenario to have a nice progression of the load. This is highly dependent of the application and of the size of the target server(s). Calculate the normal duration of the scenario and use the interarrival time between users and the duration of the phase to estimate the number of simultaneous users for each given phase.
  5. Launch benchmark with your first application parameters set-up: tsung start (run man tsung for more options)
  6. Wait for the end of the test or stop by hand with tsung stop (reports can also be generated during the test (see § 7) : the statistics are updated every 10 seconds). For a brief summary of the current activity, use tsung status
  7. Analyze results, change parameters and relaunch another benchmark

4.1.2  WEBDAV

It’s the same approach as HTTP: first you start to record one or more sessions with the recorder: tsung-recorder -p webdav start

4.1.3  Benchmarking a proxy server

By default, the HTTP plugin is used to benchmark HTTP servers. But you can also benchmark HTTP Proxy servers. To do that, you must add in the options section:

  <option type="ts_http" name="http_use_server_as_proxy" value="true"></option>

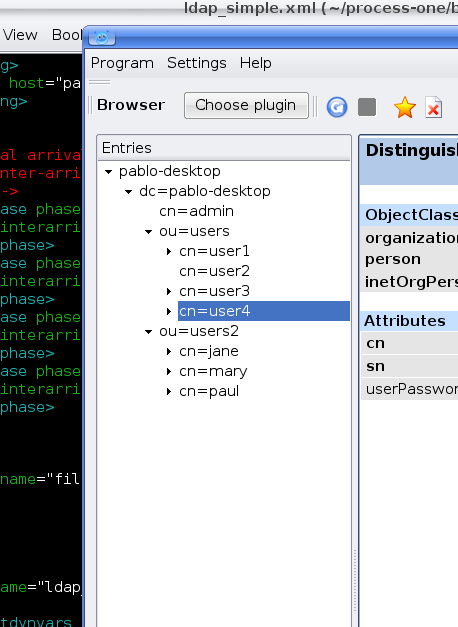

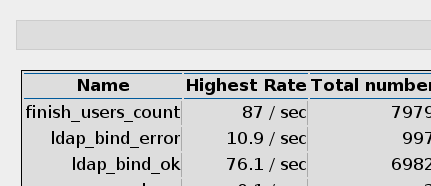

4.2  LDAP benchmark approach

An LDAP plugin for the recorder is not yet implemented, so you have to write the session by yourself; see section 6.6.7 for more information.

4.3  PostgreSQL benchmark approach

It’s the same approach as HTTP: first you start to record one or more sessions with the recorder: tsung-recorder -p pgsql start

This will start a proxy listening to port 8090 and will proxy requests to 127.0.0.0:5432.

To choose another port and/or address: tsung-recorder -L 5432 -I 10.6.1.1 -P 5433 -p pgsql start

This will start a proxy listening to port 5432 and will proxy requests to 10.6.1.1:5433.

4.4  MySQL benchmark approach

A MySQL plugin for the recorder is not yet implemented, so you have to write the session by yourself; see section 6.6.5 for more information.

4.5  Jabber/XMPP benchmark approach

4.5.1  Overview

This paragraph explains how to write a session for Jabber/XMPP.

There are two differences between HTTP and Jabber testing:

  1. There is no recorder for Jabber, so you have to write your sessions by hand (an example is provided in 6.6.3).
  2. the jabber plugin does not parse XML; instead it uses packet acknowledgments.

4.5.2  Acknowledgments of messages

Since the jabber plugin does not parse XML (historically, it was for performance reasons), you must have a way to tell when a request is finished. There are 3 possibilities:

ack=local
as soon as a packet is received from the server, the request is considered as completed. Hence if you use a local ack with a request that do not require a response from the server (presence for ex.), it will wait forever (or until a timeout is reached).
ack=no_ack
as soon as the request is send, it is considered as completed (do not wait for incoming data)
ack=global
synchronized users. its main use is for waiting for all users to connect before sending messages. To do that, set a request with global ack (it can be the first presence msg:
   <request> <jabber type="presence" ack="global"/> </request>

You also have to specify the number of users to be connected:

<option type="ts_jabber" name="global_number" value="100"></option>

To be sure that exactly global_number users are started, add the ’maxnumber’ attribute to ’users’

    <users maxnumber="100" interarrival="1.0" unit="second"></users>

If you do not specify maxnumber, the global ack will be reset every global_number users

New in 1.2.2: This version adds an new option for a session. if you set the attribute bidi (for bidirectional) in the session tag: <session ... bidi=’true’>, then incoming messages from the server will be analyzed. Currently, only roster subscription requests are handled: if a user received a subscription request (<presence ... type=’subscribe’>), it will respond with a <presence ... type=’subscribed’> message.

4.5.3  Status: Offline, Connected and Online

You can send messages to offline or online users. A user is considered online when he has send a presence:initial message (before this message , the state of the user is connected).

If you want to switch back to connected before going offline, you can use a presence:final message:

presence:final does two things:

  1. It removes the client from the list of Online users, and moves them into the list of Connected users.
  2. It sends a broadcast presence update of type=’unavailable’.

presence:final is optional.

warn: this is new in 1.2.0, in earlier version, only 2 status were available: online and offline; a user was considered online as soon as it was connected.

4.5.4  Authentication

Below are configuration examples for the possible authentication methods. Note: the regular expressions used here are only examples - they may need to be altered depending on how a particular server implementation composes messages (see also  6.5.1 for password settings).

4.5.5  Privacy list testing

There are two actions available to allow for rudimentary privacy lists load testing:

5  Using the proxy recorder

The recorder has three plugins: for HTTP, WebDAV and for PostgreSQL.

To start it, run tsung-recorder -p <PLUGIN> start, where PLUGIN can be http, webdav or pgsql for PostgreSQL. The default plugin is http.

The proxy is listening to port 8090. You can change the port with -L portnumber.

To stop it, use tsung-recorder stop.

The recorded session is created as ~/.tsung/tsung_recorderYYYMMDD-HH:MM.xml; if it doesn’t work, take a look at ~/.tsung/log/tsung.log-tsung_recorder@hostname

During the recording, you can add custom tag in the XML file, this can be useful to set transactions or comments: tsung-recorder record_tag "<transaction name=’login’>’’

Once a session has been created, you can insert it in your main configuration file, either by editing by hand the file, or by using an ENTITY declaration, like:

<!DOCTYPE tsung SYSTEM "/usr/share/tsung/tsung-1.0.dtd" [
 <!ENTITY mysession1 SYSTEM "/home/nniclausse/.tsung/tsung_recorder20051217-13:11.xml">
]>
...
<sessions>
  &mysession1;
</sessions>

5.1  PostgreSQL

For PostgreSQL, the proxy will connect to the server at IP 127.0.0.1 and port 5432. Use -I serverIP to change the IP and -P portnumber to change the port.

5.2  HTTP and WEBDAV

For HTTPS recording, use http://- instead of https:// in your browser

New in 1.2.2: For HTTP, you can configure the recorder to use a parent proxy (but this will not work for https). Add the -u option to enable parent proxy, and use -I serverIP to set the IP and -P portnumber to set the port of the parent.

6  Understanding tsung.xml configuration file

The default encoding is utf-8. You can use a different encoding, like in:

<?xml version="1.0" encoding="ISO-8859-1"?>

6.1  File structure

Scenarios are enclosed into Tsung tags:

<?xml version="1.0"?>
<!DOCTYPE tsung SYSTEM "/usr/share/tsung/tsung-1.0.dtd" [] >
<tsung loglevel="info">
...
</tsung>

If you add the attribute dumptraffic="true", all the traffic will be logged to a file. Warn: this will considerably slow down Tsung, so use with care. It is useful for debugging purpose. You can use the attribute dumptraffic="light" to dump only the first 44 bytes.

Since version 1.4.0, you have also a specific logging per protocol, using dumptraffic="protocol". It’s currently only implemented for HTTP: this will log all requests in a CSV file, with the following data:

#date;pid;id;http method;host;URL;HTTP status;size;duration;match;error

Where:

date
timestamp at the end of the request (seconds since 1970-01-01 00:00:00 UTC)
pid
erlang process id
id
tsung user id
host
server hostname
url
URL (relative)
HTTP status
HTTP reponse status (200, 304, etc.)
size
reponse size (in bytes)
duration
request duration (msec)
match
if a match is defined in the request: match|nomatch (last <match> if several are defined)
error
name of http error (or empty)

The loglevel can also have a great impact on performance: For high load, warning is recommended. Possible values are:

For REALLY verbose logging, recompile tsung with make debug and set loglevel to debug.

6.2  Clients and server

Scenarios start with clients (Tsung cluster) and server definitions:

6.2.1  Basic setup

For non distributed load, you can use a basic setup like:

 <clients>
    <client host="localhost" use_controller_vm="true"/>
 </clients>

 <servers>
    <server host="192.168.1.1" port="80" type="tcp"></server>
 </servers>

This will start the load on the same host and on the same Erlang virtual machine as the controller.

The server is the entry point into the cluster. You can add several servers, by default each server will have a weight of 1, and each session will choose a server randomly according to the weight. You can set a weight for each server like this (weight can be an integer or a float):

 <servers>
    <server host="server1" port="80" type="tcp" weight="4"></server>
    <server host="server2" port="80" type="tcp" weight="1"></server>
 </servers>

(in version older than 1.5.0, the weight option was not implemented and a round robin algorithm was used to choose the server).

Type can be tcp, ssl or udp (for IPv6, use tcp6, ssl6 or udp6 ; only available in version 1.4.2 and newer)

6.2.2  Advanced setup

The next example is more complex, and use several features for advanced distributed testing:

  <clients>
     <client host="louxor" weight="1" maxusers="800">
         <ip value="10.9.195.12"></ip>
         <ip value="10.9.195.13"></ip>
     </client>
     <client host="memphis" weight="3" maxusers="600" cpu="2"/>
  </clients>

<servers>
  <server host="10.9.195.1" port="8080" type="tcp"></server>
</servers>

Several virtual IP can be used to simulate more machines. This is very useful when a load-balancer use the client's IP to distribute the traffic among a cluster of servers. New in 1.1.1: IP is no longer mandatory. If not specified, the default IP will be used.

New in 1.4.0: You can use <ip scan="yes" value="eth0"/> to scan for all the IP aliases on a given interface (eth0 in this example).

In this example, a second machine is used in the Tsung cluster, with a higher weight, and 2 cpus. Two Erlang virtual machines will be used to take advantage of the number of CPU.

Note: Even if an Erlang VM is now able to handle several CPUs (erlang SMP), benchmarks shows that it’s more efficient to use one VM per CPU (with SMP disabled) for tsung clients. Only the controller node is using SMP erlang. Therefore, cpu should be equal to the number of cores of your nodes. If you prefer to use erlang SMP, add the -s option when starting tsung (and don’t set cpu in the config file).

By default, the load is distributed uniformly on all CPU (one CPU per client by default). The weight parameter (integer) can be used to take into account the speed of the client machine. For instance, if one real client has a weight of 1 and the other client has a weight of 2, the second one will start twice the number of users as the first (the proportions will be 1/3 and 2/3). In the earlier example where for the second client has 2 CPU and weight=3, the weight is equal to 1.5 for each CPU.

The maxusers parameter is used to bypass the limit of maximum number of sockets opened by a single process (1024 by default on many OS) and the lack of scalability of the select system call. When the number of users is higher than the limit, a new erlang virtual machine will be started to handle new users. The default value of maxusers is 800 . Nowadays, with kernel polling enable, you can and should use a very large value for maxusers (30000 for example) without performance penalty (but don’t forget to raise the limit of the OS with ulimit -n, see also FAQ A.3).

Note: If you are using a tsung master with slaves, the master distributes sessions to slaves. If a session contains multiples requests, a slave will execute each of these requests in order.

6.2.3  Running Tsung with a job scheduler

Tsung is able to get its client node list from a batch/job scheduler. It currently handle PBS/torque, LSF and OAR. To do this, set the type attribute to batch, e.g.:

  <client type="batch" batch="torque" maxusers="30000">

If you need to scan IP aliases on nodes given by the batch scheduler, use scan_intf like this:

  <client type="batch" batch="torque" scan_intf='eth0'  maxusers="30000">

6.3  Monitoring

Tsung is able to monitor remote servers using several backends that communicates with remote agent; This is configured in the <monitoring> section. Available statistics are: CPU activity, load average, memory usage.

Note that you can get the nodes to monitor from a job scheduler, like:

  <monitor batch="true" host="torque" type="erlang"></monitor>

Several types of remote agents are supported (erlang is the default) :

6.3.1  Erlang

The remote agent is started by Tsung. It use erlang communications to retrieve statistics of activity on the server. For example, here is a cluster monitoring definition based on Erlang agents, for a cluster of 6 computers:

  <monitoring>
    <monitor host="geronimo" type="erlang"></monitor>
    <monitor host="bigfoot-1" type="erlang"></monitor>
    <monitor host="bigfoot-2" type="erlang"></monitor>
    <monitor host="f14-1" type="erlang"></monitor>
    <monitor host="f14-2" type="erlang"></monitor>
    <monitor host="db" type="erlang"></monitor>
  </monitoring>

Note: monitored computers needs to be accessible through the network, and erlang communications must be allowed (no firewall is better ). SSH (or rsh) needs to be configured to allow connection without password on. You must use the same version of Erlang/OTP on all nodes otherwise it may not work properly !

If you can’t have erlang installed on remote servers, you can use one of the other available agents:

6.3.2  SNMP

The type keyword snmp can replace the erlang keyword, if SNMP monitoring is preferred. They can be mixed. Since version 1.2.2, you can customize the SNMP version, community and port number. It uses the MIB provided in net-snmp (see also A.9).

  <monitoring>
    <monitor host="geronimo" type="snmp"/>
    <monitor host="f14-2" type="erlang"></monitor>
    <monitor host="db" type="snmp">
      <snmp version="v2" community="mycommunity" port="11161"/>
    </monitor>
  </monitoring>

The default version is v1, default community public and default port 161.

Since version 1.4.2, you can also customize the OIDs retrieved from the SNMP server, using one or several oid element:

   <monitor host="127.0.0.1" type="snmp">
     <snmp version="v2">
       <oid value="1.3.6.1.4.1.42.2.145.3.163.1.1.2.11.0"
            name="heapused" type="sample" eval="fun(X)-> X/100 end."/>
     </snmp>
   </monitor>

type can be sample, counter or sum, and optionally you can define a function (with erlang syntax) to be applied to the value (eval attribute).

6.3.3  Munin

Since version 1.3.1, Tsung is able to retrieve data from a munin-node agent (see http://munin.projects.linpro.no/wiki/munin-node). The type keyword must be set to munin, for example:

  <monitoring>
    <monitor host="geronimo" type="munin"/>
    <monitor host="f14-2" type="erlang"></monitor>
  </monitoring>

6.4  Defining the load progression

6.4.1  Randomly generated users

The load progression is set-up by defining several arrival phases:

 <load>
  <arrivalphase phase="1" duration="10" unit="minute">
    <users interarrival="2" unit="second"></users>
  </arrivalphase>

  <arrivalphase phase="2" duration="10" unit="minute">
    <users interarrival="1" unit="second"></users>
  </arrivalphase>

  <arrivalphase phase="3" duration="10" unit="minute">
    <users interarrival="0.1" unit="second"></users>
  </arrivalphase>
 </load>

With this setup, during the first 10 minutes of the test, a new user will be created every 2 seconds, then during the next 10 minutes, a new user will be created every second, and for the last 10 minutes, 10 users will be generated every second. The test will finish when all users have ended their session.

You can also use arrivalrate instead of interarrival. For example, if you want 10 new users per second, use:

  <arrivalphase phase="1" duration="10" unit="minute">
    <users arrivalrate="10" unit="second"></users>
  </arrivalphase>

You can limit the number of users started for each phase by using the maxnumber attribute, just like this:

  <arrivalphase phase="1" duration="10" unit="minute">
    <users maxnumber="100" arrivalrate="10" unit="second"></users>
  </arrivalphase>
  <arrivalphase phase="2" duration="10" unit="minute">
    <users maxnumber="200" arrivalrate="10" unit="second"></users>
  </arrivalphase>

In this case, only 100 users will be created in the first phases, and 200 more during the second phase.

The complete sequence can be executed several times using the loop attribute in the load tag (loop=’2’ means the sequence will be looped twice, so the complete load will be executed 3 times) (feature available since version 1.2.2).

The load generated in terms of HTTP requests / seconds will also depend on the mean number of requests within a session (if you have a mean value of 100 requests per session and 10 new users per seconds, the theoretical average throughput will be 1000 requests/ sec).

6.4.2  Statically generated users

If you want to start a given session (see  6.6) at a given time during the test, it is possible since version 1.3.1:

 <load>
  <arrivalphase phase="1" duration="10" unit="minute">
    <users interarrival="2" unit="second"></users>
  </arrivalphase>
  <user session="http-example" start_time="185" unit="second"></user>
  <user session="http-example" start_time="10" unit="minute"></user>
  <user session="foo" start_time="11" unit="minute"></user>
</load>
 <sessions>
   <session name="http-example" probability="0" type="ts_http">
    <request> <http url="/" method="GET"></http> </request>
   </session>
   <session name="foo" probability="100" type="ts_http">
    <request> <http url="/" method="GET"></http> </request>
   </session>
 <sessions>

In this example, we have two sessions, one has a "0" probability (and therefore will not be used in the first phase), and the other 100%. We define 3 users starting respectively 3mn and 5 seconds after the beginning of the test (using the http-example session), one starting after 10 minutes, and a last one starting after 11 minutes (using the foo session this time)

6.4.3  Duration of the load test

By default, tsung will end when all started users have finished their session. So it can be much longer than the duration of arrivalphases. If you want to stop Tsung after a given duration (even if phases are not finished or if some sessions are still actives), you can do this with the duration attribute in load (feature added in 1.3.2):

 <load duration="1" unit="hour">
  <arrivalphase phase="1" duration="10" unit="minute">
    <users interarrival="2" unit="second"></users>
  </arrivalphase>
</load>

Currently, the maximum value for duration is a little bit less than 50 days. unit can be second, minute or hour.

6.5  Setting options

Thinktimes, SSL, Buffers

Default values can be set-up globally: thinktime between requests in the scenario, SSL cipher algorithms, TCP/UDP buffer sizes (the default value is 32KB). These values overrides those set in session configuration tags if override is true.

  <option name="thinktime" value="3" random="false" override="true"/>
  <option name="ssl_ciphers"
           value="EXP1024-RC4-SHA,EDH-RSA-DES-CBC3-SHA"/>
  <option name="tcp_snd_buffer" value="16384"></option>
  <option name="tcp_rcv_buffer" value="16384"></option>
  <option name="udp_snd_buffer" value="16384"></option>
  <option name="udp_rcv_buffer" value="16384"></option>
Timeout for acknowledgments of messages

This is used to set the idle timeout(used for ’parse’ and ’local’ ack) and global ack timeout(used for ’global’ ack). By default, idle timeout will be 10min(600000) and global ack timeout will be infinity. This value can be changed like this:

  <option name="idle_timeout" value="300000"></option>
  <option name="glocal_ack_timeout" value="6000000"></option>
Hibernate

A new option is available in version 1.3.1: hibernate. This is used to reduced memory consumption of simulated users during thinktimes. By default, hibernation will be activated for thinktimes higher than 10sec. This value can be changed like this:

  <option name="hibernate" value="5"></option>

To disable hibernation, you must set the value to infinity.

Rate_limit

A new option is available in version 1.4.0: rate_limit. This will limit the bandwidth of each client (using a token bucket algorithm). The value is in KBytes per second. You can also specify a maximum burst value (eg. max=’2048’). By default the burst size is the same as the rate (1024KB in the following example). Currently, only incoming traffic is rate limited.

  <option name="rate_limit" value="1024"></option>
Ports_range

If you need to open more than 30000 simultaneous connections on a client machine, you will be limited by the number of TCP client ports, even if you use several IPs (this is true at least on Linux). To bypass this limit, Tsung must not delegate the selection of client ports and together with using several IP for each client, you have to defined a range for available clients ports, for ex:

  <option name="ports_range" min="1025" max="65535"/>
Setting the seed for random numbers

If you want to use a fixed seed for the random generator, you can use the seed option, like this (by default, tsung will use the current time to set the seed, therefore random numbers should be different for every test).

  <option name="seed" value="42"/>
Path for Websocket

When you use Websocket as a server type, you can set the connect path for Websocket as following:

  <option name="websocket_path" value="/chat"/>

6.5.1  XMPP/Jabber options

Default values for specific protocols can be defined. Here is an example of option values for Jabber/XMPP:

  <option type="ts_jabber" name="global_number" value="5" />
  <option type="ts_jabber" name="userid_max" value="100" />
  <option type="ts_jabber" name="domain" value="jabber.org" />
  <option type="ts_jabber" name="username" value="myuser" />
  <option type="ts_jabber" name="passwd" value="mypasswd" />
  <option type="ts_jabber" name="muc_service" value="conference.localhost"/>

Using these values, users will be myuserXXX where XXX is an integer in the interval [1:userid_max] and passwd mypasswdXXX

If not set in the configuration file, the values will be set to:

Other options are available if you prefer to use a CSV file for username/password, see  6.6.3.

You can also set the muc_service here (see previous example).

6.5.2  HTTP options

For HTTP, you can set the UserAgent values (available since Tsung 1.1.0), using a probability for each value (the sum of all probabilities must be equal to 100)

  <option type="ts_http" name="user_agent">
    <user_agent probability="80">
       Mozilla/5.0 (X11; U; Linux i686; en-US; rv:1.7.8) Gecko/20050513 Galeon/1.3.21
    </user_agent>
    <user_agent probability="20">
      Mozilla/5.0 (Windows; U; Windows NT 5.2; fr-FR; rv:1.7.8) Gecko/20050511 Firefox/1.0.4
    </user_agent>
  </option>

6.6  Sessions

Sessions define the content of the scenario itself. They describe the requests to execute.

Each session has a given probability. This is used to decide which session a new user will execute. The sum of all session's probabilities must be 100.

Since Tsung 1.5.0, you can use weights instead of probabilities. In the following example, there will be twice as many sessions of type s1 than s2.

  <session name="s1" weight="2" type="ts_http">
  <session name="s2" weight="1" type="ts_http">

A transaction is just a way to have customized statistics. Say if you want to know the response time of the login page of your website, you just have to put all the requests of this page (HTML + embedded pictures) within a transaction. In the example above, the transaction called index_request will gives you in the statistics/reports the mean response time to get index.en.html + header.gif. Be warn that If you have a thinktime inside the transaction, the thinktime will be part of the response time.

6.6.1  Thinktimes

You can set static or random thinktimes to separate requests. By default, a random thinktime will be a exponential distribution with mean equals to value.

<thinktime value="20" random="true"></thinktime>

In this case, the thinktime will be an exponential distribution with a mean equals to 20 seconds.

Since version 1.3.0, you can also use a range [min:max] instead of a mean for random thinktimes (the distribution will be uniform in the interval):

<thinktime min="2" max="10" random="true"></thinktime>

Since version 1.4.0, you can use a dynamic variable to set the thinktime value:

<thinktime value='%%_rndthink%%' random='true'></thinktime>

6.6.2  HTTP

This example shows several features of the HTTP protocol support in Tsung: GET and POST request, basic authentication, transaction for statistics definition, conditional request (IF MODIFIED SINCE), ...

<sessions>
  <session name="http-example" probability="70" type="ts_http">

    <request> <http url="/" method="GET" version="1.1">
                    </http> </request>
    <request> <http url="/images/logo.gif"
               method="GET" version="1.1"
               if_modified_since="Fri, 14 Nov 2003 02:43:31 GMT">
              </http></request>

    <thinktime value="20" random="true"></thinktime>

    <transaction name="index_request">
     <request><http url="/index.en.html"
                          method="GET" version="1.1" >
              </http> </request>
     <request><http url="/images/header.gif"
                          method="GET" version="1.1">
              </http> </request>
    </transaction>

    <thinktime value="60" random="true"></thinktime>
    <request>
      <http url="/" method="POST" version="1.1"
               contents="bla=blu">
      </http> </request>
    <request>
       <http url="/bla" method="POST" version="1.1"
             contents="bla=blu&amp;name=glop">
       <www_authenticate userid="Aladdin"
                         passwd="open sesame"/></http>
    </request>
  </session>

  <session name="backoffice" probability="30" ...>
  ... </session>
</sessions>

If you use an absolute URL, the server used in the URL will override the one specified in the <server> section. The following relative requests in the session will also use this new server value (until a new absolute URL is set).

New in 1.2.2: You can add any HTTP header now, as in:

   <request>
       <http url="/bla" method="POST" contents="bla=blu&amp;name=glop">
         <www_authenticate userid="Aladdin" passwd="open sesame"/>
         <http_header name="Cache-Control" value="no-cache"/>
         <http_header name="Referer" value="http://www.w3.org/"/>
      </http>
   </request>

New in 1.3.0: You can also read the content of a POST or PUT request from an external file:

 <http url='mypage' method='POST' contents_from_file='/tmp/myfile' />

Since 1.3.1, you can also manually set a cookie, though the cookie is not persistent: you must add it in every <requests>:

  <http url="/">
    <add_cookie key="foo" value="bar"/>
    <add_cookie key="id"  value="123"/>
  </http>
Authentication

Until Tsung 1.5.0, only Basic authentication was implemented. You can now use Digest Authentication and OAuth 1.0.

To use Digest authentication:

 <!-- 1. First request return 401. We use dynvars to fetch nonce and realm -->
 <request>
   <dyn_variable name="nonce" header="www-authenticate/nonce"/>
   <dyn_variable name="realm" header="www-authenticate/realm"/>
   <http url="/digest" method="GET" version="1.1"/>
 </request>

  <!--
  2. This request will be authenticated. Type="digest" is important.
  We use the nonce and realm values returned from the previous
  If the webserver returns the nextnonce we set it to the nonce dynvar
  for use with the next request.
  Else it stays set to the old value
  -->
  <request subst="true">
    <dyn_variable name="nonce" header="authentication-info/nextnonce"/>
    <http url="/digest" method="GET" version="1.1">
      <www_authenticate userid="user" passwd="passwd" type="digest" realm="%%_realm%%" nonce="%%_nonce%%"/>
    </http>
  </request>

To use OAuth authentication:

     <!-- Getting a Request Token -->

      <request>
        <dyn_variable name="access_token" re="oauth_token=([^&amp;]*)"/>
        <dyn_variable name="access_token_secret" re="oauth_token_secret=([^&amp;]*)" />
        <http url="/oauth/example/request_token.php" method="POST" version="1.1" contents="empty">
          <oauth consumer_key="key" consumer_secret="secret"  method="HMAC-SHA1"/>
        </http>
      </request>

      <!-- Getting an Access Token -->

      <request subst='true'>
        <dyn_variable name="access_token" re="oauth_token=([^&amp;]*)"/>
        <dyn_variable name="access_token_secret" re="oauth_token_secret=([^&amp;]*)"/>
          <http url="/oauth/example/access_token.php" method="POST" version="1.1" contents="empty">
          <oauth consumer_key="key" consumer_secret="secret"  method="HMAC-SHA1" access_token="%%_access_token%%" access_token_secret="%%_access_token_secret%%"/>
        </http>
      </request>

      <!-- Making Authenticated Calls -->

      <request subst="true">
        <http url="/oauth/example/echo_api.php" method="GET" version="1.1">
         <oauth consumer_key="key" consumer_secret="secret" access_token="%%_access_token%%" access_token_secret="%%_access_token_secret%%"/>
        </http>
      </request>

6.6.3  Jabber/XMPP

Here is an example of a session definition for the Jabber/XMPP protocol:

<sessions>
 <session probability="70" name="jabber-example" type="ts_jabber">

    <request> <jabber type="connect" ack="local" /> </request>

    <thinktime value="2"></thinktime>

    <transaction name="authenticate">
      <request> <jabber type="auth_get" ack="local"></jabber> </request>
      <request> <jabber type="auth_set_plain" ack="local"></jabber> </request>
    </transaction>

    <request> <jabber type="presence:initial" ack="no_ack"/> </request>


    <thinktime value="30"></thinktime>

    <transaction name="online">
    <request> <jabber type="chat" ack="no_ack" size="16" destination="online"/></request>
    </transaction>
    <thinktime value="30"></thinktime>

    <transaction name="offline">
      <request> <jabber type="chat" ack="no_ack" size="56" destination="offline"/><request>
    </transaction>

    <thinktime value="30"></thinktime>

    <transaction name="close">
      <request> <jabber type="close" ack="local"> </jabber></request>
    </transaction>
  </session>
</sessions>
Roster

What you can do with rosters using Tsung:

You can

  1. Add a new contact to their roster - The new contact is added to the Tsung Group group, and their name matches their JID
  2. Send a subscribe presence notification to the new contact’s JID - This results in a pending subscription
  3. Rename a roster contact This changes the previously added contact’s name from the default JID, to Tsung Testuser
  4. Delete the previously added contact.

Note that when you add a new contact, the contact JID is stored and used for the operations that follow. It is recommended that for each session which is configured to perform these operations, only do so once. In other words, you would NOT want to ADD more than one new contact per session. If you want to alter the rate that these roster functions are used during your test, it is best to use the session ’probability’ factor to shape this.

The nice thing about this is that when you test run is complete, your roster tables should look the same as before you started the test. So, if you set it up properly, you can have pre-loaded roster entries before the test, and then use these methods to dynamically add, modify, and remove roster entries during the test as well.

Example roster modification setup:

<session probability="100" name="jabber-rostermod" type="ts_jabber">

    <!-- connect, authenticate, roster 'get', etc... -->

    <transaction name="rosteradd">
      <request>
        <jabber type="iq:roster:add" ack="no_ack" destination="online"></jabber>
      </request>
      <request>
        <jabber type="presence:subscribe" ack="no_ack"/>
      </request>
    </transaction>

    <!-- ... -->

    <transaction name="rosterrename">
      <request> <jabber type="iq:roster:rename" ack="no_ack"></jabber> </request>
    </transaction>

    <!-- ... -->

    <transaction name="rosterdelete">
      <request> <jabber type="iq:roster:remove" ack="no_ack"></jabber> </request>
    </transaction>

    <!-- remainder of session... -->

  </session>

See also 4.5.2 for automatic handling of subscribing requests.

SASL Anonymous

SASL Anonymous authentication example:

<session probability="100" name="sasl" type="ts_jabber">

    <request> <jabber type="connect" ack="local"></jabber> </request>

    <thinktime value="10"></thinktime>

    <transaction name="authenticate">
     <request>
       <jabber type="auth_sasl_anonymous" ack="local"></jabber></request>

     <request>
       <jabber type="connect" ack="local"></jabber> </request>

    <request>
       <jabber type="auth_sasl_bind" ack="local" ></jabber></request>
    <request>
       <jabber type="auth_sasl_session" ack="local" ></jabber></request>

    </transaction>
Presence

For more info, see section 2.2 of RFC 3921.

If you omit the show or status attributes, they default to chat and Available respectively.

Example of broadcast presence (broadcast to members of your roster):

    <request>
      <jabber type="presence:broadcast" show="away" status="Be right back..." ack="no_ack"/>
    </request>

    <thinktime value="5"></thinktime>

    <request>
      <jabber type="presence:broadcast" show="chat" status="Available
      to chat" ack="no_ack"/>
    </request>

    <thinktime value="5"></thinktime>

    <request>
      <jabber type="presence:broadcast" show="dnd" status="Don't bother me!" ack="no_ack"/>
    </request>
    <thinktime value="5"></thinktime>

    <request>
     <jabber type="presence:broadcast" show="xa" status="I may never come back..."
      ack="no_ack"/>
    </request>
    <thinktime value="5"></thinktime>

    <request> <jabber type="presence:broadcast" ack="no_ack"/> </request>
    <thinktime value="5"></thinktime>

Example of directed presence (sent to random online users):

    <request>
      <jabber type="presence:directed" show="away" status="Be right back..." ack="no_ack"/>
    </request>
    <thinktime value="5"></thinktime>

    <request>
      <jabber type="presence:directed" show="chat" status="Available to chat" ack="no_ack"/>
    </request>
    <thinktime value="5"></thinktime>

    <request>
      <jabber type="presence:directed" show="dnd" status="Don't bother me!" ack="no_ack"/>
    </request>
    <thinktime value="5"></thinktime>

    <request>
      <jabber type="presence:directed" show="xa" status="I may never come back..."
        ack="no_ack"/>
     </request>
    <thinktime value="5"></thinktime>

    <request>
      <jabber type="presence:directed" ack="no_ack"/>
    </request>
    <thinktime value="5"></thinktime>
MUC

Tsung supports three MUC operations:

  1. Join a room (attribute type=’muc:join’)
  2. Send a message to a room (attribute type=’muc:chat’)
  3. Change nickname (attribute type=’muc:nick’)
  4. Exit a room (attribute type=’muc:exit)

Here’s an example:

<-- First, choose an random room and random nickname: -->
<setdynvars sourcetype="random_number" start="1" end="100">
 <var name="room"/>
</setdynvars>
<setdynvars sourcetype="random_string" length="10">
 <var name="nick1"/>
</setdynvars>

<request subst="true">
  <jabber type='muc:join' ack = "local" room = "room%%_room%%" nick = "%%_nick1%%"/>
</request>

<!-- use a for loop to send several messages to the room -->
<for from="1" to="6" var="i">
 <thinktime value="30"/>
 <request subst="true">
   <jabber type="muc:chat" ack="no_ack" size="16" room =
   "room%%_room%%"/>
 </request>
</for>

<!-- change nickname-->
<thinktime value="2"/>
<setdynvars sourcetype="random_string" length="10">
 <var name="nick2"/>
</setdynvars>

<request subst="true">
 <jabber type="muc:nick" room="room%%_room%%" nick="%%_nick2%%"
         ack="no_ack"/>
</request>

MUC support is available since version 1.3.1

PubSub

Experimental support for PubSub is available in version 1.3.1

You can read the following entry: https://support.process-one.net/browse/TSUN-115

VHost

VHost support is available since version 1.3.2

Tsung is able to bench multiple vhost instances by choosing a vhost XMPP name from a list at connection time in the scenario.

The vhost list is read from a file:

<options>
...
<option name="file_server" value="domains.csv" id="vhostfileId"></option>
...
<option type="ts_jabber" name="vhost_file" value="vhostfileId"></option>
...
</options>

When each client starts a session, it chooses randomly a domain (each domain has the same probability).

Reading usernames and password from a CSV file

Since version 1.4.0, you can now use a CSV file to store the usernames and password.

Configure the CSV file:

 <options>
  <option name="file_server" id='userdb' value="/home/foo/.tsung/users.csv"/>
 </options>

And then you have to defined two variables of type file, and the first jabber request (connect) must include a xmpp_authenticate tag:

<session probability="100" name="jabber-example" type="ts_jabber">

  <setdynvars sourcetype="file" fileid="userdb" delimiter=";" order="iter">
    <var name="username" />
    <var name="password" />
  </setdynvars>

    <request subst='true'>
      <jabber type="connect" ack="no_ack">
         <xmpp_authenticate username="%%_username%%" passwd="%%_password%%"/>
      </jabber>
    </request>

   <thinktime value="2"></thinktime>

   <transaction name="authenticate">

   <request>
     <jabber type="auth_get" ack="local"> </jabber>
   </request>
   <request>
     <jabber type="auth_set_plain" ack="local"></jabber>
   </request>

  </transaction>
...
</session>

Moreover (since 1.5.0), when using chat messages to random or offline users, you should disable the default users (not from CSV) by setting userid_max to 0 and by setting the fileid for offline and random users (also used for pubsub):

 <options>
  <option type="ts_jabber" name="userid_max" value="0" />
  <option type="ts_jabber" name="random_from_fileid" value='userdb'/>
  <option type="ts_jabber" name="offline_from_fileid" value='userdb'/>
  <option type="ts_jabber" name="delimiter" value=";"/>
 </options>

The username (resp. passwd) should be the first (resp. second) entry in the each CSV line (the delimiter is by default ";" and can be overriden).

raw XML

You can send raw XML data to the server using the raw type:

<jabber type="raw" ack="no_ack" data="&lt;stream&gt;foo&lt;/stream&gt;"></jabber>

Beware: you must encode XML characters like < ,>, &, etc.

resource

By default, the XMPP resource is set to tsung. Since version 1.5.0, you can override this (in all auth_* and register requests) using the resource attribute.

6.6.4  PostgreSQL

For PostgreSQL, 4 types of requests are available:

  1. connect (to a given database with a given username
  2. authenticate (with password or not)
  3. sql (basic protocol)
  4. close

In addition, the following parts of the extended protocol is supported:

  1. copy, copydone and copyfail
  2. parse, bind, execute, describe
  3. sync, flush

This example shows most of the features of a PostgreSQL session:

  <session probability="100" name="pgsql-example" type="ts_pgsql">
    <transaction name="connection">
      <request>
        <pgsql type="connect" database="bench" username="bench" />
      </request>
    </transaction>

    <request><pgsql type="authenticate" password="sesame"/></request>

    <thinktime value="12"/>

    <request><pgsql type="sql">SELECT * from accounts;</pgsql></request>

    <thinktime value="20"/>

    <request><pgsql type="sql">SELECT * from users;</pgsql></request>

    <request><pgsql type='sql'><![CDATA[SELECT n.nspname as "Schema",
  c.relname as "Name",
  CASE c.relkind WHEN 'r' THEN 'table' WHEN 'v' THEN 'view' WHEN 'i'
  THEN 'index' WHEN 'S' THEN 'sequence' WHEN 's' THEN '%_toto_% END as "Type",
  u.usename as "Owner"
FROM pg_catalog.pg_class c
     LEFT JOIN pg_catalog.pg_user u ON u.usesysid = c.relowner
     LEFT JOIN pg_catalog.pg_namespace n ON n.oid = c.relnamespace
WHERE c.relkind IN ('r','v','S','')
      AND n.nspname NOT IN ('pg_catalog', 'pg_toast')
      AND pg_catalog.pg_table_is_visible(c.oid)
ORDER BY 1,2;]]></pgsql></request>

    <request><pgsql type="close"></pgsql></request>

  </session>

Example with the extended protocol:

<request><pgsql type='parse' name_prepared='P0_7'><![CDATA[BEGIN;]]></pgsql></request>
<request><pgsql type='sync'/></request>
<request><pgsql type='parse' name_prepared='P0_8'><![CDATA[UPDATE pgbench_accounts
  SET abalance = abalance + $1 WHERE aid = $2;]]></pgsql></request>
<request><pgsql type='sync'/></request>
<request><pgsql type='parse' name_prepared='P0_9'><![CDATA[SELECT
  abalance FROM pgbench_accounts
  WHERE aid = $1;]]></pgsql></request>
<request><pgsql type='sync'/></request>
<request><pgsql type='parse' name_prepared='P0_10'><![CDATA[UPDATE pgbench_tellers
   SET tbalance = tbalance + $1 WHERE tid = $2;]]></pgsql></request>
<request><pgsql type='sync'/></request>
<request><pgsql type='parse' name_prepared='P0_11'><![CDATA[UPDATE pgbench_branches
   SET bbalance = bbalance + $1 WHERE bid = $2;]]></pgsql></request>
<request><pgsql type='sync'/></request>
<request><pgsql type='parse' name_prepared='P0_12'><![CDATA[INSERT
   INTO pgbench_history (tid, bid, aid, delta, mtime)
   VALUES ($1, $2, $3, $4, CURRENT_TIMESTAMP);]]></pgsql></request>
<request><pgsql type='sync'/></request>
<request><pgsql type='parse' name_prepared='P0_13'><![CDATA[END;]]></pgsql></request>
<request><pgsql type='sync'/></request>
<request><pgsql type='bind' name_prepared='P0_7' formats='none' formats_results='text' /></request>
<request><pgsql type='describe' name_portal=''/></request>
<request><pgsql type='execute'/></request>
<request><pgsql type='sync'/></request>
<request><pgsql type='bind' name_portal='' name_prepared='P0_8'
   formats='none' formats_results='text'
   parameters='2924,37801'/></request>

6.6.5  MySQL

For MySQL, 4 types of requests are available (same as PostgreSQL):

  1. connect (to a given database with a given username
  2. authenticate (with password or not)
  3. sql
  4. close

This example shows most of the features of a MySQL session:

<session probability="100" name="mysql-example" type="ts_mysql">
 <request>
  <mysql type="connect" />
 </request>
 <request>
  <mysql type="authenticate" database="test" username="test" password="test" />
 </request>
 <request>
  <mysql type="sql">SHOW TABLES</mysql>
 </request>
 <request>
  <mysql type="sql">SELECT * FROM mytable</mysql>
 </request>
 <request>
  <mysql type="close" />
 </request>
</session>

6.6.6  Websocket

For Websocket, 3 types of requests are available:

  1. connect (to a given path)
  2. message (send message to server)
  3. close

Example with Websocket as a session type:

<session probability="100" name="mysql-example" type="ts_websocket">
 <request>
  <websocket type="connect" path="/path/to/ws"></websocket>
 </request>
 <request>
  <websocket type="message">Hello world!</websocket>
 </request>
 <request>
  <websocket type="close"></websocket>
 </request>
</session>

6.6.7  LDAP

Authentication

The recommended mechanism used to authenticate users against a LDAP repository requires two steps to follow. Given an username and password, we:

  1. Search the user in the repository tree, using the username (so users can reside in different subtrees of the organization)
  2. Try to bind as the user, with the distinguished name found in the first step and the user’s password

If the bind is successful, the user is authenticated (this is the scheme used, among others, by the LDAP authentication module for Apache http://httpd.apache.org/docs/2.0/mod/mod_auth_ldap.html)

LDAP Setup

For this example we are going to use a simple repository with the following hierarchy:

images/ldap-hierarchy.png
Figure 1: LDAP Hierarchy

the repository has users in two organizational units

  1. users (with four members)
  2. users2 (with tree members)

For simplicity we set the password of each user to be the same as its common name (cn). Tsung Setup We will use a CSV file as input, containing the user:password pairs for our test. So we start by writing it, in this case we name the file users.csv

user1;user1
user2;user2
user3;user3
user4;user4
jane;jane
mary;mary
paul;pablo
paul;paul

(the pair paul:pablo should fail to authenticate, we will note that in the Tsung report) Then, in our Tsung scenario, we let Tsung know about this file

    <options>
       <option name="file_server" id="users" value="users.csv"/>
    </options>
We use two dynamic variables to hold the username and password
    <setdynvars sourcetype="file" fileid="users" delimiter=";" order="iter">
               <var name="username" />
               <var name="password" />
     </setdynvars>

To start the authentication process we instruct Tsung to perform a search, to find the distinguished name of the user we are trying to authenticate

  <ldap type="search" base="dc=pablo-desktop" filter="(cn=%%_username%%)"
        result_var="search_result" scope="wholeSubtree"></ldap>

As we need to access the search result, we specify it using the result_var attribute. This attribute tells Tsung in which dynamic variable we want to store the result (if the result_var attribute isn’t set, Tsung doesn’t store the search result in any place). Finally, we try to bind as that user.

<request subst="true">
<ldap type="bind" user="%%ldap_auth:user_dn%%"
      password="%%_password%%"></ldap>
</request>

The only thing that remains to do is to implement the ldap_auth:user_dn function, that extract the distinguished name from the search result.

-module(ldap_auth).
-export([user_dn/1]).
user_dn({_Pid,DynVars}) ->
      [SearchResultEntry] = proplists:get_value(search_result,DynVars),
      {_,DN,_} = SearchResultEntry,
      DN.

We aren’t covering errors here. supposing that there is always one (and only one) user found, that we extract from the search_result variable (as defined in the previous search operation). Each entry in the result set is a SearchResultEntry record. The record definition can be found in <TSUNG_DIR>/include/ELDAPv3.hrl.

As we only need to access the distinguished name of the object, we index into the result tuple directly. But if you need to access other attributes you probably will want to include the appropriate .hrl and use the record syntax instead. One of the eight user:password pairs in our users file was wrong, so we expect 1/8 of the authentication attempts to fail.

Indeed, after running the scenario we can confirm this in the Tsung report (see figure 2). The bind operation maintains two counters: ldap_bind_ok and ldap_bind_error, that counts successful and unsuccessful bind attempts.

images/ldap-results.png
Figure 2: LDAP Results
Other examples
<session probability="100" name="ldap-example" type="ts_ldap">
  <request>
     <ldap type="bind" user="uid=foo" password="bar"/>
  </request>

   <request>
       <ldap type="search" base="dc=pablo-desktop" filter="(cn=user2)"
       scope="wholeSubtree"></ldap>
   </request>

<!-- Add. Adds a new entry to the directory* -->
  <request subst="true">
  <ldap type="add" dn="%%_new_user_dn%%" >
   <attr type="objectClass">
    <value>organizationalPerson</value>
    <value>inetOrgPerson</value>
    <value>person</value>
   </attr>
   <attr type="cn"><value>%%_new_user_cn%%</value></attr>
   <attr type="sn"><value>fffs</value></attr>
 </ldap>
</request>

<!-- Modify. Modifies an existing entry; type=add|delete|modify-->
 <request subst="false">
   <ldap type="modify" dn="cn=u119843,dc=pablo-desktop" >
    <modification type="replace">
     <attr type="sn"><value>SomeSN</value></attr>
     <attr type="mail"><value>some@mail.com</value></attr>
    </modification>
  </ldap>
 </request>
</session>

6.6.8  Mixing session type

Since version 1.3.2, a new tag change_type can be used in a session to change it’s type.

    <request> <jabber type="chat" ack="no_ack" size="16"
destination="offline"/> </request>

    <thinktime value="3"/>

    <change_type new_type="ts_http" host="foo.bar" port="80"
server_type="tcp" store="true"/>

    <request> <http url="http://foo.bar/"/> </request>
    <request> <http url="/favicon"/> </request>

    <change_type new_type="ts_jabber" host="localhost" port="5222"
server_type="tcp" restore="true"/>

    <request> <jabber type="chat" ack="no_ack" size="16"
destination="previous"/> </request>

store=’true’ can be used to save the current state of the session (socket, cookies for http, …) and restore=’true’ to reuse the previous state when you switch back to the old protocol.

A dynamic variable set in the first part of the session will be available after a change_type. There is currently one caveat: you have to use a full URL in the first http request after a <change_type> (a relative URL will fail).

6.7  Advanced features

6.7.1  Dynamic substitutions

Dynamic substitution are mark-up placed in element of the scenario. For HTTP, this mark-up can be placed in basic authentication (www_authenticate tag: userid and passwd attributes), URL (to change GET parameter) and POST content.

Those mark-up are of the form %%Module:Function%%. Substitutions are executed on a request-by-request basis, only if the request tag has the attribute subst="true".

When a substitution is requested, the substitution mark-up is replaced by the result of the call to the Erlang function: Module:Function({Pid, DynData}) where Pid is the Erlang process id of the current virtual user and DynData the list of all Dynamic variables (Warn: before version 1.1.0, the argument was just the Pid !).

Here is an example of use of substitution in a Tsung scenario:

<session name="rec20040316-08:47" probability="100" type="ts_http">
 <request subst="true">
  <http url="/echo?symbol=%%symbol:new%%" method="GET">
  </http></request>
</session>

Here is the Erlang code of the module used for dynamic substitution:

-module(symbol).
-export([new/1]).

new({Pid, DynData}) ->
    case random:uniform(3) of
        1 -> "IBM";
        2 -> "MSFT";
        3 -> "RHAT"
    end.

(use erlc to compiled the code, and put the resulting .beam file in \$PREFIX/lib/erlang/lib/tsung-X.X.X/ebin/ on all client machines)

As you can see, writing scenario with dynamic substitution is simple. It can be even simpler using dynamic variables (see later).

If you want to set unique id, you can use the built-in function ts_user_server:get_unique_id.

<session name="rec20040316-08:47" probability="100" type="ts_http">
 <request subst="true">
  <http url="/echo?id=%%ts_user_server:get_unique_id%%" method="GET">
  </http></request>
</session>

6.7.2  Reading external file

New in 1.0.3: A new module ts_file_server is available. You can use it to read external files. For example, if you need to read user names and passwd from a CSV file, you can do it with it (currently, you can read only a single file).

You have to add this in the XML configuration file:

 <option name="file_server"  value="/tmp/userlist.csv"></option>

New in 1.2.2: You can read several files, using the id attribute to identify each file:

 <option name="file_server"  value="/tmp/userlist.csv"></option>
 <option name="file_server" id='random' value="/tmp/randomnumbers.csv"></option>

Now you can build your own function to use it, for example, create a file called readcsv.erl:

-module(readcsv).
-export([user/1]).

user({Pid,DynVar})->
    {ok,Line} = ts_file_server:get_next_line(),
    [Username, Passwd] = string:tokens(Line,";"),
    "username=" ++ Username ++"&password=" ++ Passwd.

The output of the function will be a string username=USER&password=PASSWORD

Then compile it with erlc readcsv.erl and put readcsv.beam in \$prefix/lib/erlang/lib/tsung-VERSION/ebin directory (if the file has an id set to random, change the call to:
ts_file_server:get_next_line(random)).

Then use something like this in your session:

  <request subst="true">
    <http url='/login.cgi' version='1.0' contents='%%readcsv:user%%&amp;op=login'
    content_type='application/x-www-form-urlencoded' method='POST'>
    </http>
  </request>

Two functions are available: ts_file_server:get_next_line and ts_file_server:get_random_line. For the get_next_line function, when the end of file is reached, the first line of the file will be the next line.

New in 1.3.0: you no longer have to create an external function to parse a simple csv file: you can use setdynvars (see next section for detailed documentation):

<setdynvars sourcetype="file" fileid="userlist.csv" delimiter=";" order="iter">
 <var name="username" />
 <var name="user_password" />
</setdynvars>

This defines two dynamic variables username and user_password filled with the next entry from the csv file. Using the previous example, the request is now:

  <request subst="true">
    <http url='/login.cgi' version='1.0'
      contents='username=%%_username%%&amp;password=%%_user_password%%&amp;op=login'
    content_type='application/x-www-form-urlencoded' method='POST'>
    </http>
  </request>

Much simpler than the old method !

In case you have several arrival phases programmed and if you use file with order="iter" the position in the file will not be reset between different arrival phase. You will not be returned to the first line when changing phase.

  <arrivalphase phase="1" duration="10" unit="minute">
   <users maxnumber="10" arrivalrate="100" unit="second"></users>
  </arrivalphase>
  <arrivalphase phase="2" duration="10" unit="minute">
   <users maxnumber="20" arrivalrate="100" unit="second"></users>
  </arrivalphase>

In this example phase 1 will read about 10 lines and phase 2 will read the next 20 lines.

6.7.3  Dynamic variables

In some cases, you may want to use a value given by the server in a response later in the session, and this value is dynamically generated by the server for each user. For this, you can use <dyn_variable> in the scenario

Let’s take an example with HTTP. You can easily grab a value in a HTML form like:

<form action="go.cgi" method="POST">
<hidden name="random_num" value="42"></form>
</form>

with:

 <request>
   <dyn_variable name="random_num" ></dyn_variable>
   <http url="/testtsung.html" method="GET" version="1.0"></http>
 </request>

Now random_num will be set to 42 during the user’s session. It’s value will be replace in all mark-up of the form %%_random_num%% if and only if the request tag has the attribute subst="true", like:

    <request subst="true">
      <http url='/go.cgi' version='1.0'
      contents='username=nic&amp;random_num=%%_random_num%%&amp;op=login'
      content_type='application/x-www-form-urlencoded' method='POST'>
      </http>
    </request>
Regexp

If the dynamic value is not a form variable, you can set a regexp by hand, for example to get the title of a HTML page: the regexp engine uses the re module, a Perl like regular expressions module for Erlang.

    <request>
      <dyn_variable name="mytitlevar"
                    re="&lt;title&gt;(.*)&lt;/title&gt;"/>
      <http url="/testtsung.html" method="GET" version="1.0"></http>
    </request>

Previously (before 1.4.0), Tsung uses the old regexp module from erlang. This is now deprecated. The syntax was:

    <request>
      <dyn_variable name="mytitlevar"
                    regexp="&lt;title&gt;\(.*\)&lt;/title&gt;"/>
      <http url="/testtsung.html" method="GET" version="1.0"></http>
    </request>
XPath

A new way to analyze the server response has been introduced in the release 1.3.0. It is available only for the HTTP and XMPP plugin since it is based on XML/HTML parsing. This feature uses the mochiweb library and only works with erlang R12B and newer version.

This give us some benefices:

To utilize xpath expression, use a xpath attribute when defining the dyn_variable, instead of re, like:

<dyn_variable name="field1_value" xpath="//input[@name='field1']/@value"/>
<dyn_variable name="title" xpath="/html/head/title/text()"/>

There is a bug in the xpath engine, result nodes from "descendant-or-self" aren’t returned in document order. This isn’t a problem for the most common cases. However, queries like //img[1]/@src are not recommended, as the order of the <img> elements returned from //img is not the expected. The order is respected for paths without "descendant-or-self" axis, so this: /html/body/div[2]/img[3]/@src is interpreted as expected and can be safely used.

It is possible to use Xpath to get a list of elements from an html page, allowing dynamic retrieval of objects. You can either create embedded erlang code to parse the list produced, or use foreach that was introduced in release (1.4.0).

For XMPP, you can get all the contacts in a dynamic variable:

<request subst="true">
    <dyn_variable name="contactJids"
      xpath="//iq[@type='result']/query[@xmlns='jabber:iq:roster']//item[string-length(@wr:type)=0]/@jid"
    />
    <jabber type="iq:roster:get" ack="local"/>
</request>
JSONPath

Another way to analyze the server response has been introduced in the release 1.3.2 when the server is sending JSON data. It is only for the HTTP plugin. This feature uses the mochiweb library and only works with erlang R13B and newer version.

Tsung implements a (very) limited subset of JSONPath as defined here http://goessner.net/articles/JsonPath/

To utilize jsonpath expression, use a jsonpath attribute when defining the dyn_variable, instead of re, like:

<dyn_variable name="array3_value" jsonpath="field.array[3].value"/>

You can also use expressions Key=Val, e.g.:

<dyn_variable name="myvar" jsonpath="field.array[?name=bar].value"/>
PostgreSQL

New in 1.3.2!

Since the PostgreSQL protocol is binary, regexp are not useful to parse the output of the server. Instead, a specific parsing can be done to extract content from the server’s response; to do this, use the pgsql_expr attribute. Use data_row[L][C] to extract the column C of the line L of the data output. You can also use the literal name of the column (ie. the field name of the table). This example extract 3 dynamic variables from the server’s response:

First one, extract the 3rd column of the fourth row, then the mtime field from the second row, and then it extract some data of the row_description.

    <request>
      <dyn_variable name="myvar" pgsql_expr="data_row[4][3]"/>
      <dyn_variable name="mtime" pgsql_expr="data_row[2].mtime"/>
      <dyn_variable name="row" pgsql_expr="row_description[1][3][1]"/>
      <pgsql type="sql">SELECT * from pgbench_history LIMIT 20;</pgsql>
     </request>

A row description looks like this:

=INFO REPORT==== 14-Apr-2010::11:03:22 ===
            ts_pgsql:(7:<0.102.0>) PGSQL: Pair={row_description,
                                                [{"tid",text,1,23,4,-1,16395},
                                                 {"bid",text,2,23,4,-1,16395},
                                                 {"aid",text,3,23,4,-1,16395},
                                                 {"delta",text,4,23,4,-1,
                                                  16395},
                                                 {"mtime",text,5,1114,8,-1,
                                                  16395},
                                                 {"filler",text,6,1042,-1,26,
                                                  16395}]}

So in the example, the row variable equals "aid".

set_dynvars

Since version 1.3.0, more powerful dynamic variables are implemented:

You can set dynamic variables not only while parsing server data, but you can build them using external files or generate them with a function or generate random numbers/strings:

Several types of dynamic variables are implemented (sourcetype tag):

  1. Dynamic variables defined by calling an erlang function:
          <setdynvars sourcetype="erlang" callback="ts_user_server:get_unique_id">
        <var name="id1" />
      </setdynvars>
  2. Dynamic variables defined by parsing an external file:
          <setdynvars sourcetype="file" fileid="userdb" delimiter=";" order="iter">
        <var name="user" />
        <var name="user_password" />
      </setdynvars>
    delimiter can be any string, and order can be iter or random
  3. A dynamic variable can be a random number (uniform distribution)
          <setdynvars sourcetype="random_number" start="3" end="32">
        <var name="rndint" />
      </setdynvars>
  4. A dynamic variable can be a random string
          <setdynvars sourcetype="random_string" length="13">
        <var name="rndstring1" />
      </setdynvars>
  5. A dynamic variable can be a urandom string: this is much faster than the random string, but the string is not really random: the same set of characters is always used.
  6. A dynamic variable can be generated by dynamic evaluation of erlang code:
          <setdynvars sourcetype="eval"
                  code="fun({Pid,DynVars})->
                           {ok,Val}=ts_dynvars:lookup(md5data,DynVars),
                           ts_digest:md5hex(Val) end.">
        <var name="md5sum" />
      </setdynvars>

    In this case, we use tsung function ts_dynvars:lookup to retrieve the dynamic variable named md5data. This dyn_variable md5data can be set in any of the ways described in the Dynamic variables section 6.7.3.

  7. A dynamic variable can be generated by applying a JSONPath specification (see 6.7.3) to an existing dynamic variable:
      <setdynvars sourcetype="jsonpath" from='notification' jsonpath="result[?state=OK].node">
      <var name="deployed" />
  </setdynvars>
  8. You can create dynamic variables to get the hostname and port of the current server
        <setdynvars sourcetype="server">
      <var name="host" />
      <var name="port" />
    </setdynvars>
  9. You can define a dynamic variable as constant value to use it in a plugin
        <setdynvars sourcetype="value" value="foobar">
      <var name="constant" />
    </setdynvars>

A setdynvars can be defined anywhere in a session.

6.7.4  Checking the server’s response

With the tag match in a request tag, you can check the server’s response against a given string, and do some actions depending on the result. In any case, if it matches, this will increment the match counter, if it does not match, the nomatch counter will be incremented.

For example, let’s say you want to test a login page. If the login is ok, the server will respond with Welcome ! in the HTML body, otherwise not. To check that:

 <request>
      <match do="continue" when="match">Welcome !</match>
      <http url='/login.php' version='1.0' method='POST'
       contents='username=nic&amp;user_password=sesame'
       content_type='application/x-www-form-urlencoded' >
 </request>

You can use a regexp instead of a simple string.

The list of available actions to do is:

You can mixed several match tag in a single request:

 <request>
      <match do="loop" sleep_loop="5" max_loop="10" when="match">Retry</match>
      <match do="abort" when="match">Error</match>
      <http url='/index.php' method=GET'>
 </request>

You can also do the action on "nomatch" instead of "match".

If you want to skip the HTTP headers, and match only on the body, you can use skip_headers=’http’. Also, you can apply a function to the content before matching; for example the following example use both features to compute the md5sum on the body of a HTTP response, and compares it to a given value:

<match do='log' when='nomatch' skip_headers='http'
  apply_to_content='ts_digest:md5hex'>01441debe3d7cc65ba843eee1acff89d</match>
<http url="/" method="GET" version="1.1"/>

You can also use dynamic variables, using the subst attribute:

<match do='log' when='nomatch' subst='true' >%%_myvar%%</match>
<http url="/" method="GET"/>

Since 1.5.0, it’s now possible to add ’name’ attribute in ’match’ tag to name a record printed in match.log as follow:

<match do='log' when='match' name='http_match_200ok'>200OK</match>
<http url="/" method="GET" version="1.1"/>

6.7.5  Loops, If, Foreach

Since 1.3.0, it’s now possible to add conditional/unconditional loops in a session.

Since 1.4.0, it is possible to loop through a list of dynamic variables thanks to foreach.

<for>

Repeat the enclosing actions a fixed number of times. A dynamic variable is used as counter, so the current iteration could be used in requests. List of attributes:

from
Initial Value
to
Last value
incr
Amount to increment in each iteration
var
Name of the variable to hold the counter
 <for from="1" to="10" incr="1" var="counter">
  [...]
  <request> <http url="/page?id=%%_counter%%"></http> </request>
  [...]
 </for>
<repeat>

Repeat the enclosing action (while|until) some condition. This is intended to be used together with dyn_variable declarations. List of attributes:

name
Name of the repeat
max_repeat
Max number of loops (default value is 20)

The last element of repeat must be either <while> or <until> example:

  <repeat name="myloop" max_repeat="40">

   [...]

   <request>
     <dyn_variable name="result" re="Result: (.*)"/>
     <http url="/random" method="GET" version="1.1"></http>
   </request>

   [...]

  <until var="result" eq="5"/> </repeat>

Since 1.3.1, it’s also possible to add if statements based on dynamic variables:

<if>
<if var="tsung_userid" eq="3">
  <request> <http url="/foo"/> </request>
  <request> <http url="/bar"/> </request>
</if>

You can use eq or neq to check the variable.

If the dynamic variable is a list (output from xpath for example), you can access to the nth element of a list like this:

<if var="myvar[1]" eq="3">

(here we compare the first element of the list to 3)

<foreach>

Repeat the enclosing actions for all the elements contained in the list specified. The basic syntax is as follows:

<foreach name="element" in="list">
  <request subst="true">
    <http url="%%_element%%" method="GET" version="1.1"/>
  </request>
</foreach>

It is possible to limit the list of elements you’re looping through, thanks to the use of the include or exclude attributes inside the foreach statement.

As an example, if you want to include only elements with a local path you can write:

<foreach name="element" in="list" include="^/.*$">

If you want to exclude all the elements from a specific URI, you would write:

<foreach name="element" in="list" exclude="http:\/\/.*\.tld\.com\/.*$">

You can combine this with a xpath query. For instance the following scenario will retrieve all the images specified on a web page:

<request subst="true">
  <dyn_variable name="img_list" xpath="//img/@src"/>
  <http url="/mypage.html" method="GET" version="1.1"/>
</request>
<foreach name="img" in="img_list">
  <request subst="true">
    <http url="%%_img%%" method="GET" version="1.1"/>
  </request>
</foreach>

6.7.6  Rate limiting

Since version 1.4.0, rate limiting can be enabled, either globally (see 6.5), or for each session separately.

For example, to limit the rate to 64KB/sec for a given session:

  <session name="http-example" probability="70" type="ts_http">
   <set_option name="rate_limit" value="64"></option>
   ...

Only the incoming traffic is rate limited currently.

7  Statistics and reports

7.1  File format

By default, tsung use it’s own format (see FAQ A.6).

Since version 1.4.2, you can configure tsung to use a JSON format; however in this case, the tools tsung_stats.pl and tsung_plotter will not work with the JSON files.

To enable JSON output, use:

<tsung backend='json' ...>

Example output file with JSON:

{
 "stats": [
 {"timestamp": 1317413841,  "samples": []},
 {"timestamp": 1317413851,  "samples": [
   {"name": "users", "value": 0, "max": 0},
   {"name": "users_count", "value": 0, "total": 0},
   {"name": "finish_users_count", "value": 0, "total": 0}]},
 {"timestamp": 1317413861,  "samples": [
   {"name": "users", "value": 0, "max": 1},
   {"name": "load", "hostname": "requiem", "value": 1, "mean":
     0.0,"stddev": 0,"max": 0.0,"min": 0.0 ,"global_mean": 0
     ,"global_count": 0},
   {"name": "freemem", "hostname": "requiem", "value": 1, "mean":
     2249.32421875,"stddev": 0,"max": 2249.32421875,"min":
     2249.32421875 ,"global_mean": 0 ,"global_count": 0},
   {"name": "cpu", "hostname": "requiem", "value": 1, "mean":
     4.790419161676647,"stddev": 0,"max": 4.790419161676647,"min":
     4.790419161676647 ,"global_mean": 0 ,"global_count": 0},
   {"name": "session", "value": 1, "mean": 387.864990234375,"stddev":
     0,"max":  387.864990234375,"min": 387.864990234375
     ,"global_mean": 0 ,"global_count": 0},
   {"name": "users_count", "value": 1, "total": 1},
   {"name": "finish_users_count", "value": 1, "total": 1},
   {"name": "request", "value": 5, "mean": 75.331787109375,"stddev":
     46.689242405019954,"max":  168.708984375,"min": 51.744873046875
     ,"global_mean": 0 ,"global_count": 0},
   {"name": "page", "value": 1, "mean": 380.7548828125,"stddev":
     0.0,"max":  380.7548828125,"min": 380.7548828125 ,"global_mean":
     0 ,"global_count": 0},
   {"name": "connect", "value": 1, "mean": 116.70703125,"stddev":
     0.0,"max":  116.70703125,"min": 116.70703125 ,"global_mean": 0
     ,"global_count": 0},
   {"name": "size_rcv", "value": 703, "total": 703},
   {"name": "size_sent", "value": 1083, "total": 1083},
   {"name": "connected", "value": 0, "max": 0}, {"name": "http_304", "value": 5, "total": 5}]}]}

7.2  Available stats

The mean response time (for requests, page, etc.) is computed every 10 sec (and reset). That’s why you have the highest mean and lowest mean values in the Stats report. Since version 1.3.0, the mean for the whole test is also computed.

HTTP specific stats:

Jabber specific stats:

OS monitoring stats:

7.3  Design

A bit of explanation on the design and internals of the statistics engine:

Tsung was designed to handle thousands of requests/sec, for very long period of times (several hours) so it do not write all data to the disk (for performance reasons). Instead it computes on the fly an estimation of the mean and standard variation for each type of data, and writes these estimations every 10 seconds to the disk (and then starts a new estimation for the next 10 sec). These computations are done for two kinds of data:

There are also two other types of useful data (no averaging is done for those) :

7.4  Generating the report

cd to the log directory of your test (say ~/.tsung/log/20040325-16:33/) and use the script tsung_stats.pl:

/usr/lib/tsung/bin/tsung_stats.pl

You can generate the statistics even when the test is running !

use –help to view all available options:

Available options:
        [--help] (this help text)
        [--verbose] (print all messages)
        [--debug] (print receive without send messages)
        [--dygraph] use dygraphs (http://danvk.org/dygraphs/) to render graphs
        [--noplot]  (don't make graphics)
        [--gnuplot <command>]  (path to the gnuplot binary)
        [--nohtml]  (don't create HTML reports)
        [--logy]  (logarithmic scale for Y axis)
        [--tdir <template_dir>] (Path to the HTML tsung templates)
        [--noextra  (don't generate graphics from extra data (os monitor, etc)
        [--rotate-xtics  (rotate legend of x axes)
        [--stats <file>] (stats file to analyse, default=tsung.log)
        [--img_format <format>] (output format for images, default=png
                                 available format: ps, svg, png, pdf)

Version 1.4.0 adds a new graphical output based on http://danvk.org/dygraphs/.

7.5  Tsung summary

Figure 3 shows an example of a summary report.

images/tsung-report.png
Figure 3: Report

7.6  Graphical overview

Figure 4 shows an example of a graphical report.

images/tsung-graph.png
Figure 4: Graphical output

7.7  Tsung Plotter

Tsung-Plotter (tsplot command) is an optional tool recently added in the Tsung distribution (it is written in Python), useful to compare different tests runned by Tsung. tsplot is able to plot data from several tsung.log files onto the same charts, for further comparisons and analyzes. You can easily customize the plots you want to generate by editing simple configuration files. You can get more information in the manual page of the tool (man tsplot).

Example of use:

tsplot "First test" firsttest/tsung.log "Second test" secondtest/tsung.log -d outputdir

Here’s an example of the charts generated by tsplot (figure 5):

images/connected.png
Figure 5: Graphical output of tsplot

7.8  RRD

A contributed perl script tsung-rrd.pl is able to create rrd files from the tsung log files. It’s available in /usr/lib/tsung/bin/tsung-rrd.pl

8  References

9  Acknowledgments

The first version of this document was based on a talk given by Mickael Rémond4 during an Object Web benchmarking workshop in April 2004 (more info at http://jmob.objectweb.org/).

A  Frequently Asked Questions

A.1  Can’t start distributed clients: timeout error

Most of the time, when a crash happened at startup without any traffic generated, the problem arise because the main Erlang controller node cannot create a "slave" Erlang virtual machine. The message looks like:

Can't start newbeam on host 'XXXXX (reason: timeout) ! Aborting!

The problem is that the Erlang slave module cannot start a remote slave node.

You can test this using this simple command on the controller node (remotehost is the name of the client node)

>erl -rsh ssh -sname foo -setcookie mycookie

Eshell V5.4.3 (abort with ^G)
(foo@myhostname)1>slave:start(remotehost,bar,"-setcookie mycookie").

You should see this: {ok,bar@remotehost}

If you got {error,timeout}, it can be caused by several problems:

  1. ssh in not working (you must have a key without passphrase, or use an agent)
  2. Tsung and Erlang are not installed on all clients nodes
  3. Erlang version or location (install path) is not the same on all clients nodes
  4. A firewall is dropping erlang packets: indeed erlang virtual machines use several TCP ports (dynamically generated) to communicate (if you are using EC2, you may have to change the Security Group that is applied on the VMs used for Tsung: open port-range “0 – 65535”)
  5. SELinux: You should disable SELinux on all clients.
  6. Bad /etc/hosts: This one is wrong (real hostname should not refer to localhost/loopback):
    127.0.0.1 localhost myhostname
    This one is good:
    127.0.0.1 localhost
192.168.3.2 myhostname
  7. sshd configuration: For example, for SuSE 9.2 sshd is compiled with restricted set of paths (ie. when you shell into the account you get the users shell, when you execute a command via ssh you don’t) and this makes it impossible to start an erlang node (if erlang is installed in /usr/local for example). Run:
    ssh myhostname erl

    If the erlang shell doesn’t start then check what paths sshd was compiled with (in SuSE see /etc/ssh/sshd_config) and symlink from one of the approved paths to the erlang executable (thanks to Gordon Guthrie for reporting this).

  8. old beam processes (erlang virtual machines) running on client nodes: kill all beam processes before starting tsung.

Note that you do not need to use the 127.0.0.1 address in the configuration file. It will not work if you use it as the injection interface. The shortname of your client machine should not refer to this address.

Warn:Tsung launches a new erlang virtual machine to do the actual injection even when you have only one machine in the injection cluster (unless ’use_controller_vm’ is set to true). This is because it needs to by-pass some limit with the number of open socket from a single process (1024 most of the time). The idea is to have several system processes (Erl beam) that can handle only a small part of the network connection from the given computer. When the maxusers limit (simultaneous) is reach, a new Erlang beam is launched and the newest connection can be handled by the new beam).

New in 1.1.0: If you don’t use the distributed feature of Tsung and have trouble to start a remote beam on a local machine, you can set the ’use_controller_vm’ attribute to true, for ex.:

  <client host="mymachine" use_controller_vm="true">

A.2  Tsung crashes when I start it

Does your Erlang system has ssl support enabled ?

to test it:

  > erl
  Eshell V5.2  (abort with ^G)
  1> ssl:start().
  you should see 'ok'

A.3  Why do i have error_connect_emfile errors ?

emfile error means : too many open files

This happens usually when you set a high value for maxusers (in the <client> section) (the default value is 800).

The errors means that you are running out of file descriptors; you must check that maxusers is less than the maximum number of file descriptors per process in your system (see ulimit -n)

You can either raise the limit of your operating system ( see /etc/security/limits.conf for Linux ) or decrease maxusers (Tsung will have to start several virtual machine on the same host to bypass the maxusers limit).

It could be good if you want to test a large number of users to make some modifications to your system before launching tsung :

  net.ipv4.tcp_tw_reuse = 1
  net.ipv4.tcp_tw_recycle = 1
  net.ipv4.ip_local_port_range = 1024 65000
  fs.file-max = 65000

A.4  Tsung still crashes/fails when I start it !

First look at the log file ~/.tsung/log/XXX/tsung_controller@yourhostname' to see if there is a problem.

If the file is not created and a crashed dump file is present, maybe you are using a binary installation of Tsung not compatible with the version of erlang you used.

If you see nothing wrong, you can compile Tsung with full debugging: recompile with make debug , and don’t forget to set the loglevel to "debug" in the XML file.

To start the debugger or see what happen, start tsung with the debug argument instead of start. You will have an erlang shell on the tsung_controller node. Use toolbar:start(). to launch the graphical tools provided by Erlang.

A.5  Can I dynamically follow redirect with HTTP ?

If your HTTP server sends 30X responses (redirect) with dynamic URLs, you can handle this situation using a dynamic variable:

<request>
  <dyn_variable name="redirect" re="Location: (http://.*)\r"/>
  <http url="index.html" method="GET" ></http>
</request>

<request subst="true">
  <http url="%%_redirect%%" method="GET"></http>
</request>

You can even handle the case where the server use several redirections successively using a repeat loop (this works only with version 1.3.0 and up):

  <request>
    <dyn_variable name="redirect" re="Location: (http://.*)\r"/>
    <http url='/test/redirect.html' method='GET'></http>
  </request>

  <repeat name="redirect_loop" max_repeat="5">
    <request subst="true">
      <dyn_variable name="redirect" re="Location: (http://.*)\r"/>
      <http url="%%_redirect%%" method="GET"></http>
    </request>
    <until var="redirect" eq=""/>
  </repeat>

A.6  What is the format of the stats file tsung.log ?

# stats: dump at 1218093520
stats: users 247 247
stats: connected 184 247
stats: users_count 184 247
stats: page 187 98.324 579.441 5465.940 2.177 9.237 595 58
stats: request 1869 0.371 0.422 5.20703125 0.115 0.431 7444062 581
stats: connect 186 0.427 0.184 4.47216796875 0.174 0.894 88665254 59
stats: tr_login 187 100.848 579.742 5470.223 2.231 56.970 91567888 58
stats: size_rcv 2715777 3568647
stats: 200 1869 2450
stats: size_sent 264167 347870
# stats: dump at 1218093530
stats: users 356 356
stats: users_count 109 356
stats: connected -32 215
stats: page 110 3.346 0.408 5465.940 2.177 77.234 724492 245
stats: request 1100 0.305 0.284 5.207 0.115 0.385 26785716 2450
stats: connect 110 0.320 0.065 4.472 0.174 0.540 39158164 245
stats: tr_login 110 3.419 0.414 5470.223 2.231 90.461 548628831 245
stats: size_rcv 1602039 5170686
stats: 200 1100 3550
stats: size_sent 150660 498530
 ...

the format is, for request, page, session and transactions (tr_XXX:

# stats:’name’ 10sec_count, 10sec_mean, 10sec_stddev, max, min, mean, count

or for HTTP returns code, size ...

# stats:’name’ count(during the last 10sec), totalcount(since the beginning)

A.7  How can I compute percentile/quartiles/median for transactions or requests response time ?

It’s not directly possible. But since version 1.3.0, you can use a new experimental statistic backend: set backend="fullstats" in the <tsung> section of your configuration file.

This will print every statistics data in a raw format in a file named tsung-fullstats.log. Warning: this may impact the performance of the controller node (a lot of data has to be written to disk).

The data looks like:

{sum,connected,1}
{sum,connected,-1}
[{sample,request,214.635},
 {sum,size_rcv,268},
 {sample,page,831.189},
 {count,200},
 {sum,size_sent,182},
 {sample,connect,184.787},
 {sample,request,220.974},
 {sum,size_rcv,785},
 {count,200},
 {sum,size_sent,164},
 {sample,connect,185.482}]
{sum,connected,1}
[{count,200},{sum,size_sent,161},{sample,connect,180.812}]
[{sum,size_rcv,524288},{sum,size_rcv,524288}]

Since version 1.5.0, a script tsung_percentile.pl is provided to compute the percentiles from this file.

A.8  How can I specify the number of concurrent users ?

You can’t. But it’s on purpose: the load generated by Tsung is dependent on the arrival time between new clients. Indeed, once a client has finished his session in tsung, it stops. So the number of concurrent users is a function of the arrival rate and the mean session duration.

For example, if your web site has 1000 visits/hour, the arrival rate is 1000/3600 = 0.2778 visits/second. If you want to simulate the same load, set the inter-arrival time is to 1/0.27778 = 3.6 sec (<users interarrival="3.6" unit="second"> in the arrivalphase node in the XML config file).

A.9  SNMP monitoring doesn’t work ?!

It use SNMP v1 and the ’public’ community. It has been tested with http://net-snmp.sourceforge.net/.

You can try with snmpwalk to see if your snmpd config is ok:

>snmpwalk -v 1 -c public IP-OF-YOUR-SERVER .1.3.6.1.4.1.2021.4.5.0
UCD-SNMP-MIB::memTotalReal.0 = INTEGER: 1033436

SNMP doesn’t work with erlang R10B and Tsung older than 1.2.0.

There is a small bug in the snmp_mgr module in old Erlang release (R9C-0). You have to apply this patch to make it work. This is fixed in erlang R9C-1 and up.

--- lib/snmp-3.4/src/snmp_mgr.erl.orig  2004-03-22 15:21:59.000000000 +0100
+++ lib/snmp-3.4/src/snmp_mgr.erl       2004-03-22 15:23:46.000000000 +0100
@@ -296,6 +296,10 @@
     end;
 is_options_ok([{recbuf,Sz}|Opts]) when 0 < Sz, Sz =< 65535 ->
     is_options_ok(Opts);
+is_options_ok([{receive_type, msg}|Opts]) ->
+    is_options_ok(Opts);
+is_options_ok([{receive_type, pdu}|Opts]) ->
+    is_options_ok(Opts);
 is_options_ok([InvOpt|_]) ->
     {error,{invalid_option,InvOpt}};
 is_options_ok([]) -> true.

A.10  How can i simulate a fix number of users ?

Use maxnumber to set the max number of concurrent users in a phase, and if you want Tsung to behave like ab, you can use a loop in a session (to send requests as fast as possible); you can also define a max duration in <load>.

<load duration="5" unit="minute">
   <arrivalphase phase="1" duration="10" unit="minute">
   <users maxnumber="10" arrivalrate="100" unit="second"></users>
</arrivalphase>
</load>
<sessions>
<session probability="100" name="ab">
    <for from="1" to="1000" var="i">
      <request>
        <http url="http://myserver/index.html" method="GET"></http>
      </request>
    </for>
</session>
</sessions>

B  Errors list

error_closed
Only for non persistent session (XMPP); the server unexpectedly closed the connection; the session is aborted.
error_inet_<ERRORNAME>
Network error; see http://www.erlang.org/doc/man/inet.html for the list of all errors.
error_unknown_data
Data received from the server during a thinktime (not for unparsed protocol like XMPP). The session is aborted.
error_unknown_msg
Unknown message received (see the log files for more information). The session is aborted.
error_unknown
Abnormal termination of a session, see log file for more information.
error_repeat_<REPEATNAME>
Error in a repeat loop (undefined dynamic variable usually).
error_send_<ERRORNAME>
Error while sending data to the server, see http://www.erlang.org/doc/man/inet.html for the list of all errors.
error_send
Unexpected error while sending data to the server, see the logfiles for more information.
error_connect_<ERRORNAME>
Error while establishing a connection to the server. See http://www.erlang.org/doc/man/inet.html for the list of all errors.
error_no_online jabber
XMPP: No online user available (usually for a chat message destinated to a online user)
error_no_offline jabber
XMPP: No offline user available (usually for a chat message destinated to a offline user)
error_no_free_userid
For XMPP: all users Id are already used (userid_max is too low ?)
error_next_session
A clients fails to gets its session parameter from the config_server; the controller may be overloaded ?
error_mysql_<ERRNO>
Error reported by the mysql server (see http://dev.mysql.com/doc/refman/5.0/en/error-messages-server.html)
error_mysql_badpacket
Bad packet received for mysql server while parsing data.
error_pgsql
Error reported by the postgresql server.

C  CHANGELOG

1.4.2 -> 1.5.0 Major enhancements and bugfixes (24 May 2013)
Bugfix:
    * [TSUN-208] - in the jabber plugin, substitutions for raw request doesn't work in some cases.
    * [TSUN-209] - If tag doesn't work with Tsung 1.4.2
    * [TSUN-212] - Incorrect ERTS version being set on build.
    * [TSUN-215] - normal ack timeout shouldn't used for global ack
    * [TSUN-217] - If statement breaks on empty string
    * [TSUN-218] - Race condition in tsung-recorder
    * [TSUN-219] - Site fails to load via proxy recorder
    * [TSUN-220] - Large configuration files trigger error
    * [TSUN-229] - compatibility with erlang R15B
    * [TSUN-230] - can't connect with TLS + ejabberd
    * [TSUN-232] - Tsung for bosh protocol doesn't send a empty request to keep the user session alive.
    * [TSUN-234] - Error encoding json string with escape_uri
    * [TSUN-238] - Content-Length parsing broken
    * [TSUN-241] - Invalid link Other in the graph.html
    * [TSUN-245] - Message when dtd is not found not trivial
Improvements:
    * [TSUN-174] - add an option to set resource in XMPP
    * [TSUN-222] - Support unsubscribe operation for Jabber pubsub module
    * [TSUN-228] - allow substitutions on cookies
    * [TSUN-236] - Add probability support for servers
    * [TSUN-242] - add timestamp and request duration in dump=protocol for http
    * [TSUN-246] - http PATCH support
New Features:
    * [TSUN-214] - Ability to pass attributes for node creation for XMPP pubsub protocol.
    * [TSUN-227] - add new dynamic variable to get server hostname and port
    * [TSUN-231] - add option to use weights instead of probabilities for sessions
    * [TSUN-239] - add BOSH support
    * [TSUN-240] - add websocket support
    * [TSUN-244] - Percentile computation
    * [TSUN-248] - add AMQP support
1.4.1 -> 1.4.2 Minor enhancements and bugfixes (4 Jan 2012)
Bugfix:
   * [TSUN-199] - computation of NUsers is wrong
   * [TSUN-206] - build failure with erlang R15B
Improvements:
   * [TSUN-202] - IPv6 support
   * [TSUN-203] - snmp oids should be customizable in the config file
   * [TSUN-205] - handle dyn_variables as array in test conditions (if/until/while)
New Features:
   * [TSUN-191] - allow outputting log to stdout
   * [TSUN-192] - structured log output (JSON)
   * [TSUN-193] - accept configuration from stdin
   * [TSUN-197] - Have bug and error message on stderr and not stdout.
1.4.0 -> 1.4.1 Minor bugfixes (13 Sep 2011)
Bugfix:
   * [TSUN-188] - munin plugin is not working in 1.4.0
   * [TSUN-189] - the controller VM is not used in some case
   * [TSUN-190] - pgsql recorder can record a connect request in an already connected session
1.3.3 -> 1.4.0 Major enhancements and bugfixes (5 Sep 2011)
Bugfix:
   * [TSUN-129] - regexp (defined in match or dynvars) can fail when chunk encoding is used.
   * [TSUN-150] - Munin monitoring broken by cpu stats config request
   * [TSUN-163] - Tsung doesn't detect subdomains.
   * [TSUN-166] - snmp monitoring does not work with erlang R14A
   * [TSUN-171] - maxnumber set in a phase is not always enforced
   * [TSUN-172] - auth sasl can't authenticate against ejabberd
   * [TSUN-178] - some characters can make url and headers rewriting fail in the recorder
   * [TSUN-179] - tsung generated message stanzas are not XMPP compliant
   * [TSUN-180] - file server crash if a dynamic substitution use it
   * [TSUN-182] - When many clients are configured with few static users, none of them are launched.
   * [TSUN-183] - tsung can stop too soon in some cases
   * [TSUN-184] - 'random_number' with start and end actually returns a number from start+1 to end
   * [TSUN-187] - Client IP scan is very slow on Linux; also uses obsolete "ifconfig"
Improvements:
   * [TSUN-54] - tsung is very slow when a lot of dynamic variables are set
   * [TSUN-96] - generating more than 64k connections from a single machine
   * [TSUN-106] - Add content-encoding support for dynvar extraction
   * [TSUN-123] - add option to read usernames from an external file for jabber
   * [TSUN-125] - use the new re module everywhere instead of regexp/gregexp
   * [TSUN-152] - Add "state_rcv" record as parameter to "get_message" function.
   * [TSUN-153] - dynvar used in match may contain regexp special characters
   * [TSUN-185] - handle postgresql extended protocol
New Features:
   * [TSUN-162] - add foreach tag (loop when a dyn_variable is a list)
   * [TSUN-164] - add a switch to allow light queries/replies logging
   * [TSUN-165] - add a way to synchronize users for all plugins.
   * [TSUN-167] - add do=dump option to matching
   * [TSUN-168] - thinktimes value could be dynamically generated with dyn_variable
   * [TSUN-181] - add option to simulate slow connections
1.3.2 -> 1.3.3 Minor bugfixes (17 Aug 2010)
Bugfix:
    * [TSUN-154] - parent proxy doesn't work anymore in 1.3.x (tested with 1.3.2 and 1.3.0).
    * [TSUN-155] - url substitution is broken in some cases
    * [TSUN-156] - Tsung not using sessions with low probabilities
    * [TSUN-157] - ssl doesn't work with erlang R14A
    * [TSUN-158] - failure when a proxy is used and an URL substitution is set
    * [TSUN-159] - HTTP cookies support is broken when a proxy is used
    * [TSUN-160] - tsung can sometimes hang at the beginning using distributed setup
    * [TSUN-161] - if statement not allowed in a transaction
1.3.1 -> 1.3.2 Major bugfixes and enhancements (14 Jun 2010)
Bugfix:
    * [TSUN-128] - Apostrophes cause string to convert to deep list in setdynvars with Erlang function.
    * [TSUN-130] - static users starting time is wrong
    * [TSUN-131] - tsung can stop too early when static users are used
    * [TSUN-132] - http cookies: accept domains equals to hostname with a leading "."
    * [TSUN-133] - proxy-recorder with SSL fails on large client packets (multiple TCP packets)
    * [TSUN-138] - when an error occured( for ex a timeout during a request) and a client exits, started transactions are not updated
    * [TSUN-140] - tsung does not honor the Proxy-Connection: keep-Alive or Connection: keep-Alive header if the proxy is HTTP/1.0
    * [TSUN-142] - http recorder can fail with https rewriting and chunked encoding
    * [TSUN-147] - UDP & bidi does not seem to work
    * [TSUN-148] - dynvar not found when used in match
    * [TSUN-149] - tsung doesn't work with Amazon Elastic load balancing
    * [TSUN-151] - tsung_stats.pl produces invalid *.gplot files
Improvements:
    * [TSUN-82]  - XMPP vhost support
    * [TSUN-127] - add ability tu use floats for thinktimes
    * [TSUN-139] - option to set random seed for launchers.
    * [TSUN-141] - add dynamic variable support for postgres
    * [TSUN-146] - New tsplot yfactor configuration support breaks most common configurations
New Features:
    * [TSUN-135] - add support for SASL ANONYMOUS and PLAIN authentication for XMPP
    * [TSUN-136] - add new plugin distributed testing of filesystem (nfs for ex), using a generic mode for executing erlang functions on clients nodes
    * [TSUN-137] - add a way to mix requests types inside a single session
    * [TSUN-143] - global time limit for the load test
    * [TSUN-145] - tsung should support json parsing for dynamic variable
1.3.0 -> 1.3.1 Major bugfixes and enhancements (9 Sep 2009)
Bugfix:
    * [TSUN-92] - the computation of the minimum for sample_counter is wrong
    * [TSUN-93] - maxnumber not respected if several clients are used
    * [TSUN-102] - dyn_variable configuration fails if variable name is not a valid erlang atom
    * [TSUN-103] - Network error handling in munin plugin
    * [TSUN-104] - tsung-plotter can't handle the os_mon statistics
    * [TSUN-108] - Cannot handle complicated dyn_var name
    * [TSUN-109] - Tsung status displays always phase one even if you have more than one phase
    * [TSUN-110] - Cookie header not present if the URL is dynamically generated by a previous redirection (302)
    * [TSUN-117] - Bug in HTTP: empty header can be generated in some case
    * [TSUN-118] - HTTPS proxy recorder: ts_utils:to_https incorrectly handles Content-Length for POST requests
    * [TSUN-119] - tsung can crash when reading empty values from a csv file
    * [TSUN-122] - same http cookie key with different domains don't work
Improvements:
    * [TSUN-47] - ts_mon can be a bottleneck during very high load testing
    * [TSUN-77] - Structural requests or goto-like action for match in HTTP
    * [TSUN-81] - Dynamic variables API
    * [TSUN-83] - file_server using fixed tuple instead of list
    * [TSUN-85] - external entity should be copied into the log directory of a run.
    * [TSUN-87] - add dynamic code evaluation in set_dynvars
    * [TSUN-88] - add mkactivity method support in webdav
    * [TSUN-91] - reduce memory consumption by hibernating client process while in think state
    * [TSUN-97] - disable smp erlang for client beam for performance reason
    * [TSUN-98] - try several times to connect to the server before aborting a session
    * [TSUN-99] - make substitution work in <match>
    * [TSUN-100] - improve scalability of ts_launcher
    * [TSUN-105] - Add load average statistic to server monitoring
    * [TSUN-111] - add option to manually add a cookie in http requests
    * [TSUN-113] - split tsung command into two separate tsung and tsung-recorder commands
    * [TSUN-116] - add ability to run several tsung running in parallel on the same hosts
    * [TSUN-120] - Https recorder: Remove "Secure" from "Set-Cookie" header.
New Features:
    * [TSUN-25] - add a way to start sessions in a specific order at specified times
    * [TSUN-89] - include tsung-plotter into the tsung distribution
    * [TSUN-90] - add support for monitoring server cpu/mem using munin-node
    * [TSUN-94] - add log action for match
    * [TSUN-95] - add a default dyn_variable with a unique tsung_userid
    * [TSUN-107] - add MUC support to the jabber doc/plugin
    * [TSUN-114] - add option to apply function to data before looking for a match
    * [TSUN-115] - add pubsub support to the jabber plugin

1.2.2 -> 1.3.0 Major bugfixes and enhancements (03 Sep 2008)
Bugfix:
    * [TSUN-30] - SNMP monitoring gives an error
    * [TSUN-57] - using -l with a relative path make distributed load fails with timeout error
    * [TSUN-60] - https recorder broken if an HTML document includes absolute urls
    * [TSUN-67] - Typo breaks recording of if-modified-since headers
    * [TSUN-68] - some sites doesn't work with ":443" added in the "Host" header with https
    * [TSUN-71] - Tsung does not work with R12B (httpd_util funs removed)
    * [TSUN-73] - Wrong parsing HTTP multipart/form-data in http request - POST form doesn't work
    * [TSUN-75] - can not define more -pa arguments
    * [TSUN-84] - dyn variables that don't match should be set to an empty string
Improvements:
    * [TSUN-40] - problem to rewrite url for https with gzip-encoded html.
    * [TSUN-48] - tcp/udp buffer size should be customizable in the XML config file.
    * [TSUN-59] - if a User-Agent header is set in <header>, it should override the global one.
    * [TSUN-62] - add abilty to loop back to a previous request in a session
    * [TSUN-63] - check for ssl and crypto application at compile time
    * [TSUN-65] - enhance dynamic variables.
    * [TSUN-66] - add global mean and counter computation and reporting for samples
    * [TSUN-69] - add option to read content of a POST request from an external file
    * [TSUN-79] - setting 'Host' header with http_header doesn't work as expected
New Features:
    * [TSUN-56] - ldap plugin
    * [TSUN-58] - add a new statistics backend to dump all stats in a file
    * [TSUN-61] - add a Webdav plugin
    * [TSUN-64] - add md5 authentication in the pgsql plugin
    * [TSUN-72] - Add support for defining dyn_variables using XPath
    * [TSUN-78] - mysql plugin
    * [TSUN-80] - add random thinktime with in a given range ( [min,max])
Tasks:
    * [TSUN-76] - add explanation for errors name in the documentation

1.2.1 -> 1.2.2 Minor bugfixes and enhancements (23 Feb 2008)
Bugfix:
    * [TSUN-30] - SNMP monitoring gives an error
    * [TSUN-31] - dyn_variable usage
    * [TSUN-35] - udp is not working
    * [TSUN-36] - default regexp for dyn_variable doesn't work in all case
    * [TSUN-38] - server monitoring crash if an ethernet interface's name is more than 6 chars long
    * [TSUN-39] - https recording doesn't work with most browsers
    * [TSUN-43] - session should not terminate if rosterjid is not defined
    * [TSUN-49] - <match> doesn't work with jabber plugin
    * [TSUN-51] - tsung does not work with R12B (httpd_util funs removed)
    * [TSUN-53] - postgresql errors not reported in all cases
    * [TSUN-55] - no error counter when userid_max is reached
Improvements:
    * [TSUN-14] - no_ack messages and asynchronous msg sent by the server are not available in the reports
    * [TSUN-27] - handle bidirectional protocols
    * [TSUN-28] - Refactoring needed to ease the change of the userid / password generation code
    * [TSUN-29] - Multiple file_server support
    * [TSUN-32] - make snmp server options tunable
    * [TSUN-34] - add costum http headers
    * [TSUN-44] - tsung should ignore whitespace keepalive from xmpp server
    * [TSUN-45] - add kernel-poll support for better performance
    * [TSUN-46] - add number of open connections in statistics
    * [TSUN-47] - ts_mon can be a bottleneck during very high load testing
    * [TSUN-50] - use the whole range of Id (from 0 to userid_max) before reusing already used Ids
New Features:
    * [TSUN-26] - Ability to loop on a given sequence of phase
    * [TSUN-52] - Adding comment during script capture
    * [TSUN-41] - add support for parent proxy for http only (not https)

1.2.0 -> 1.2.1 Minor bugfixes and enhancements (07 Oct 2006)
    Bugfix:
    - [TSUN-5]  get traffic from all interfaces instead of only eth0
      in erlang os monitoring (Linux)
    - [TSUN-18 the pgsql recorder fails if the client doesn't try
      first an SSL connection
    - [TSUN-19] a % character in some requests (eg. type=sql for
      pgsql) make the config_server crash.
    - [TSUN-20] pgsql client fails while parsing data from server
    - [TSUN-21] substitution in URL is not working properly when a new server
      or port is set
    - [TSUN-23] set default http version (1.1)
    - [TSUN-24] destination=previous doesn't work (jabber)
    Improvement:
    - [TSUN-15] listen port is now customizable with the command line
    - [TSUN-17] add option to setup postgresql server IP and port at runtime
      for the recorder
    - [TSUN-22] add support for PUT, DELETE and HEAD methods for http

1.1.0 -> 1.2.0 Major feature enhancements (29 May 2006)
    - change name: idx-tsunami is now called tsung
    - add new plugin: pgsql for postgresql load testing
    - new: it's now possible to set multiple servers (selected at runtime
      by round robin)
    - add size_rcv stats
    - fix beams communication problem introduced in new erlang releases.
    - import snmp_mgr src from R9C2 to enable SNMP with R10B
    - rebuild boot scripts if erlang version is different from compile time
    - many DTD improvements
    - improved match: add loop|abort|restart on (no)match behavior,
      multiple match tags is now possible (suggested by msmith@truelink.com)
    - freemem and packet stats for Solaris (jasonwtucker@gmail.com)
    - fix several small problems with 'use_controller_vm' option
    - ip is no more mandatory (default is 0.0.0.0)
    - clients and monitoring can use hosts list defined in environment
      variables, for use with batch schedulers (openpbs/torque, LSF and OAR)
    - performance improvements in stats engine for very high load
      (use session_cache)
    Recorder:
    - add plugin architecture in recorder; add pgsql plugin
    - fix regression in recorder for WWW-Authentication
      (anders.nygren@gmail.com)
    - close client socket when connection:closed is ask by the server
      (this should enable https recording with IE)
    Jabber:
    - fix presence:roster request
    - add presence:directed , presence:broadcast & presence:final requests
      for jabber (jasonwtucker@gmail.com)
    - roster enhancements (jasonwtucker@gmail.com)
    - sip-digest authentication (jasonwtucker@gmail.com)
    - fix online: must use presence:initial to switch to online status
    - add pubsub support (mickael.remond@process-one.net)
    Http:
    - fix single user agent case.
    - minor fixes for HTTP parsing

1.0.3 -> 1.1.0 Major feature enhancements (5 Sep 2005)
    - new feature: HTTP proxy load testing in now possible (set
      http_use_server_as_proxy to true)
    - add dynamic substitution support for jabber
    - add 'raw' type of msg for Jabber (use the new 'data' attribute)
    - add the dynamic variable list to dynamic substitutions
    - UserAgent is now customizable for HTTP testing
    - Add an option to run all components (controller and launcher)
      within a single erlang beam (use_controller_vm). Should ease
      idx-tsunami use for light load tests
    - fix bash script for solaris (jasonwtucker@gmail.com)
    - fix: several 'idx-tsunami status' can be run simultaneously
      (reported by Adam Spotton)
    - internal: Host header is now set during configuration phase
    - fix last phase duration
    - fix recorder: must log absolute url if only the scheme has changed

1.0.2 -> 1.0.3 Minor bugfixes (8 Jul 2005)
    - add ts_file_server module
    - fix broken https recording
    Thx to johann.messner@jku.at for bug reporting :
    - fix: forgot to add "?" when an URL is absolute and had a query
      part
    - fix regression in the recorder (introduced in 1.0.2): must use CAPS
      for method, wrong content-length in recorder causing POST requests
      to silently fail
    - allow multiple 'dyn_variable' in DTD
    - fix Host: header when port is != 80

1.0.1 -> 1.0.2: Minor bugfixes  (6 Jun 2005)
    - fix: the recorder is working now with R10B: replace call to
      httpd_parse:request_header in recorder by an
      internal func (the func was removed in R10B)
    - update configure scripts (should build on RHEL3/x86_64)
    - remote beam startup is now tunable (-r ssh/rsh)
    - internal changes in ts_os_mon (suggested by R. Lenglet)

1.0 -> 1.0.1: Major bugfixes (18 Nov 2004)
    - fix: broken free mem on non linux arch (Matthew Schulkind)
    - add script to convert apache log file (combined) to idx-tsunami XML
    - improved configure: add --with-erlang option and xmerl PATH detection
       idx-tsunami now compiles both with R9C and R10B
    - small fixes to the DTD
    Thx to Jonathan Bresler for testing and bug reporting :
    - fix: broken 'global', 'local' and 'no_ack' requests and size computation
    - fix: broken ids in jabber messages
    - fix: broken online/offline in user_server
    - default thinktime can now be overriden
    - many improvements/fixes in analyse_msg.pl

1.0.beta7 -> 1.0:  Minor bugfixes (13 Aug 2004)
    - fix: broken path when building debian package
    - add rpm target in makefile
    - implement status
    - add 'match' in graph and doc
    - fix add_dynparams for jabber

1.0.beta6 -> 1.0.beta7:  Minor bugfixes (20 Jul 2004)
    - HTTP: really (?) fix parsing of no content-length with connection:close
    - better handling of configure (--prefix is working)
    - add different types of output backend (currently, only 'text'
      works; 'rrdtool' is started but unfinished)
    - fix: ssl_ciphers option is working again

1.0.beta5 -> 1.0.beta6:  Minor feature enhancements (5 May 2004)
    - add a DTD for the configuration file
    - add dynamic request substitution (mickael.remond@erlang-fr)
    - add dynamic variable parsing from response (can be used
      later in the session for request substitution)
    - add response pattern to match (log if not match)
    - HTTP: fix partial header parsing (mickael.remond@erlang-fr.org)
    - HTTP: fix chunk parsing when the chunk-size is split across two packets
    - HTTP: fix parsing of no content-length with connection:close case
    - check for bad input (config file, <client> name)
    - merge client and client_rcv processes into a single process
    - fix: do not connect in init anymore; this fix too long phases when
      connection time is high.
    - connect stat is now for both new connections and reconnections
    - check phase duration in launcher
    - various code cleanup

1.0.beta4 -> 1.0.beta5:  Major Feature enhancements (25 Mar 2004)
    - add SNMP monitoring (not yet customizable)
    - fix remote start: log filename is now encoded to avoid bad
      parsing of log_file by 'erl'
    Patches from mickael.remond@erlang-fr.org :
    - Added ~/.idx-tsunami creation in idx-tsunami script if the directory
      does not already exist
    - Extension of XML attribute entity normalisation
    - HTTP: fix Cookie support: Cookie are not necessarily separated by "; "
    - HTTP: fix long POST request in the recorder: dorecord message
      was missing enclosing curly brackets, and the body length counter
      were mistakenly taking the header size in its total
    - HTTP: Content-type support in the recorder (needed to handle
     non-HTML form encoded posts)
    - add autoconf support to detect Erlang installation path
    - SOAP Support: IDX-Tsunami can now record and replay SOAP HTTP
      scenario. The SOAPAction HTTP header is now recorded
    - Preliminary Windows support: A workaround has been introduced in
      the code to handle behaviour difference between Erlang Un*x and
      Erlang Windows on how the command-line is handled. When an
      assumtion is made on the string type of a parameter, it should be
      check that this is actually a string and not an atom.

1.0.beta3 -> 1.0.beta4:  Minor bugfixes (16 Mar 2004)
    - fix lost cookie when transfer-encoding:chunked is used
    - fix config parsing (the last request of the last page of a
      sesssion was not marked as endpage)
    - don't crash anymore on error during start or stop

1.0.beta2 -> 1.0.beta3:  Minor feature enhancements (24 Feb 2004)
    - fix stupid bug in start script for recorder
    - HTTP: fix '&' writes in the XML recorder for 'content' attribute
    - HTTP: enhanced Cookies parsing ('domain' and 'path' implemented).
    - ssl_ciphers can be customized
    - change log directory structure: all log files in one directory per test
    - add HTML reports  (requires the perl Template toolkit)
    - change stats names:  page_resptime -> page, response_time -> request

1.0.beta1 -> 1.0.beta2:  Minor feature enhancements (11 Feb 2004)
    - reorganise the sources
    - add tools to build a debian package
    - fix documentations
    - add minimalistic man page
    - syntax change: GETIMS +date replace by GET +'if_modified_since'

0.2.1 -> 1.0.beta1:  Major Feature Enhancements (3 Feb 2004)
    - rewrite the configuration engine. Now use an XML file.
    - add recording application: use as a HTTP proxy to record session into XML
      format
    - add support to OS monitoring (cpu, memory, network). Currently, use an
      erlang agent on the remote nodes; SNMP is on the TODO list.
      (mickael.remond@erlang-fr.org)
    - can now use several IPs per client host
    - several arrival phases can be set with different arrival rates and
      duration
    - can set test duration instead of number of users
    - add user defined statistics using a 'transaction' tag
    - HTTP: fix cookies and POST handling (mickael.remond@erlang-fr.org)
    - HTTP: rewrite the parser (faster and cleaner)
    - fix bad timeout computation when close occur for persistent client
    - bugfixes and other enhancements.
    - fix memory leak with ssl (half-closed connections)

0.2.0 -> 0.2.1:  Minor bugfixes and small enhancements (9 Dec 2003)
    - optimize session memory consumption: use an ets table to store session setup
    - HTTP: fix crash when content-length is not set in headers
    - HTTP: fix POST method
    - HTTP: preliminary chunked-encoding support in HTTP/1.1
    - HTTP: Absolute URL are handled (server and port can be overridden )
    - no more .hosts.erlang required
    - add stats on simultaneous users

0.1.1 -> 0.2.0:  Major Feature Enhancements (Aug 2003)
    - add 'realtime' stats
    - add new 'parse' type of protocol
    - add reconnection support (persistent client)
    - add basic HTTP and HTTPS support
    - split the application in two parts: a single controller (tsunami_controller),
      and the clients (tsunami)
    - switch to R9C

0.1.0 -> 0.1.1:  Bugfix realease (Aug 2002)
      - fix config file
    - fix few typos in docs
    - fix init script
    - few optimizations in user_server.erl
    - switch to R8B

0.1.0: Initial release (May 2001)
1
http://www.erlang-projects.org/Members/mremond/events/dossier_de_presentat/block_10766817551485/file
2
http://www.editions-eyrolles.com/php.accueil/Ouvrages/ouvrage.php3?ouv_ean13=9782212110791
3
http://www.sics.se/~joe/thesis/armstrong_thesis_2003.pdf
4
mickael.remond@erlang-fr.org

Copyright 2004-2013 © Nicolas Niclausse

This document was translated from LATEX by HEVEA.
